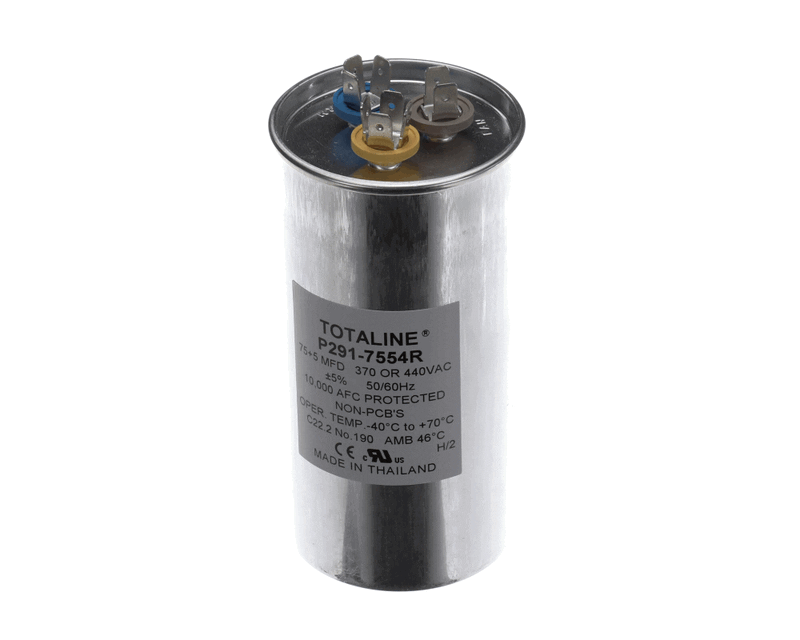

Rcd p291-7554r Dual Run Capacitor 75/5 Mfd 440V Round

Product Description

The RCD p291-7554r is a dual run capacitor designed to regulate power and provide motor support in residential and light commercial HVAC systems. Rated at 75/5 microfarads (MFD) with a 440-volt AC rating and 50/60 Hz compatibility, this round aluminum capacitor serves both the compressor and fan motor circuits simultaneously. It is built to OEM replacement specifications and is installed by licensed HVAC technicians during routine maintenance or component failure service calls. The quick-connect terminal type simplifies field replacement, and the tolerance rating of plus or minus 6 percent keeps the unit within manufacturer-specified operating parameters.

This capacitor is suited for residential split systems, package units, and other general heating and cooling equipment that requires a dual run capacitor in a round form factor. It operates across a wide temperature range of -40 to 70 degrees C, making it appropriate for installations in both extreme cold and high-heat environments such as rooftop or attic-mounted equipment. Technicians replacing a failed or weak capacitor during a seasonal tune-up or no-cool call will find this unit a direct OEM-style fit.

Key Features

• Dual capacitor design supports both compressor and condenser fan motor from a single unit
• 75/5 MFD capacitance with plus or minus 6 percent tolerance
• 440-volt AC rating with 50/60 Hz compatibility
• Quick-connect terminals for fast field installation
• Aluminum construction in a round form factor
• Wide temperature rating of -40 to 70 degrees C for varied installation environments

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC systems requiring a 75/5 MFD, 440-volt, round configuration.

Installation Notes

Dual run capacitors must be installed by a qualified HVAC technician. Always disconnect and lock out power to the unit before servicing the capacitor, and discharge the existing capacitor safely before handling or removing it. Verify that the replacement MFD ratings and voltage match the equipment nameplate before installation. Capacitor terminals carry dangerous voltage even after power is disconnected — follow all applicable electrical safety codes during service.

Technical Specifications

• Capacitance: 75/5 MFD
• Voltage: 440 volts AC
• Frequency: 50/60 Hz
• Configuration: Dual
• Run/Start: Run
• Shape: Round
• Terminal Type: Quick Connect
• Tolerance: plus or minus 6 percent
• Temperature Rating: -40 to 70 degrees C
• Length: 6.6 inches
• Width: 3 inches
• Height: 2.8 inches
• Material: Aluminum
• Weight: 2 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: p291-7554r
