Rcd p283-0341 Two Pole Fan Relay Dpdt 110/120V

Product Description

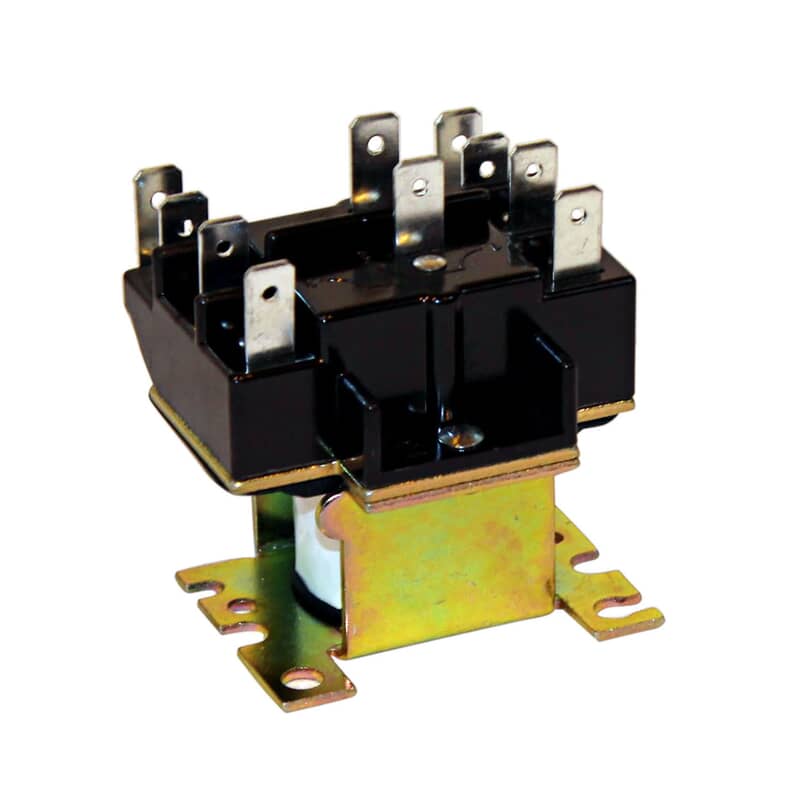

The RCD p283-0341 is a double-pole double-throw (DPDT) fan relay rated for 110/120-volt coil operation, used in HVAC systems to control fan motor circuits. As a two-pole relay, it switches two independent circuits simultaneously, making it well suited for multi-speed or staged fan control applications in forced-air heating and cooling equipment. The compact 1 inch by 1 inch by 1 inch form factor fits into tight control board cavities and relay mounting brackets. Licensed HVAC technicians install this relay as an OEM-style replacement when a failed relay causes fan operation faults or prevents the air handler or furnace blower from responding to thermostat calls.

The p283-0341 is intended for residential and light commercial HVAC applications where a DPDT relay is required to manage fan motor switching. Typical install scenarios include air handler control panels, furnace blower boards, and standalone relay mounting locations within the equipment cabinet. Technicians sourcing a direct replacement for the original Carrier HVAC relay will find this part a straightforward drop-in. No field modification of the relay itself is required for a standard replacement installation.

Key Features

• Double-pole double-throw (DPDT) configuration switches two circuits simultaneously
• 110/120-volt coil rating compatible with standard residential HVAC control voltage
• Compact 1 x 1 x 1 inch body fits standard relay sockets and mounting locations
• OEM replacement part for Carrier HVAC equipment
• Direct replacement minimizes downtime during fan circuit troubleshooting

Compatibility

Designed as an OEM-style replacement fan relay for Carrier HVAC forced-air systems requiring a DPDT 110/120-volt relay in the fan control circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing the relay. Verify the coil voltage and pole configuration of the original relay before installing the replacement to confirm a proper match. Consult the unit wiring diagram, typically located on the equipment panel, before disturbing any relay wiring.

Technical Specifications

• Relay Type: Double-Pole Double-Throw (DPDT)
• Coil Voltage: 110/120 volts
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: RCD
• Manufacturer Part Number: p283-0341
