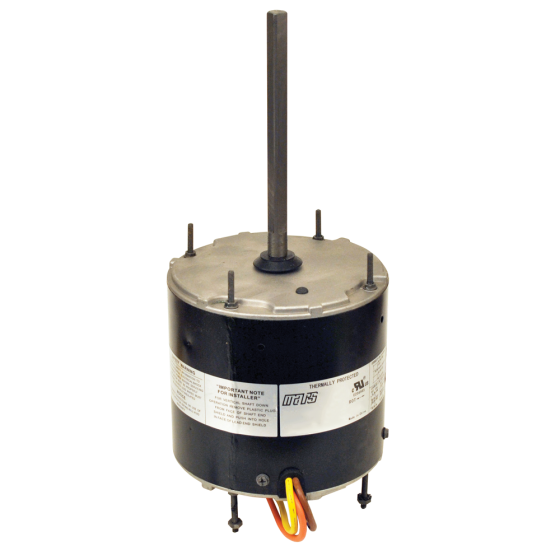

Rcd P257-E5462 Mars® Multi- HP Condenser Fan Motor 1/6-1/3 HP REPLACEMENT P257-E5462

Product Description

The RCD P257-E5462 Mars® multi-horsepower condenser fan motor is ideal for truck stock. This PSC motor features a TEAO enclosure, multi-rated horsepower of 1/6-1/3, and operates at 208-230V. It is designed for air conditioning or heat pump duty and has Rheem mounting holes with screws installed.

• Motor Type: PSC
• Multi-Rated H.P.: 1/6-1/3
• Rotation: REV

Product Highlights

Ideal for truck stock, this multi-horsepower condenser fan motor offers versatile performance and easy installation.

Product Information

Standard Information

• Brand: RCD
• Manufacturer Part Number: P257-E5462

Technical Specifications

• Ambient Temperature: 60 °C
• Motor HP: 1/6 - 1/3
• Motor Type: PSC
• Number of Speeds: 2
• RPM: 1075
• Electrical Amps: 2.6
• FLA: 2.6
• Hertz: 60
• Voltage: 208/230
• Safety Standards California Prop 65: Yes
• Operating Weight (lbs): 10
• Exterior Dimensions (D) (inches): 5.630000
• Exterior Dimensions (W) (inches): 5.630000
• Exterior Dimensions (H) (inches): 13.440000
• Shipping Weight (lbs): 10.000000
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 5/7.5/370
