Rcd P257-8729 Vertical Condenser Fan Motor 1/3hp

Product Description

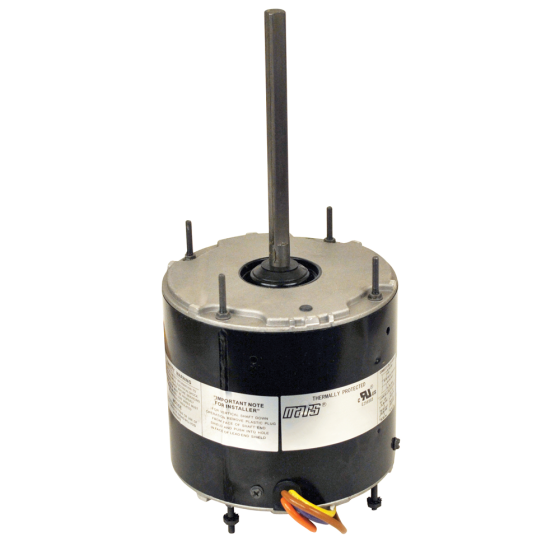

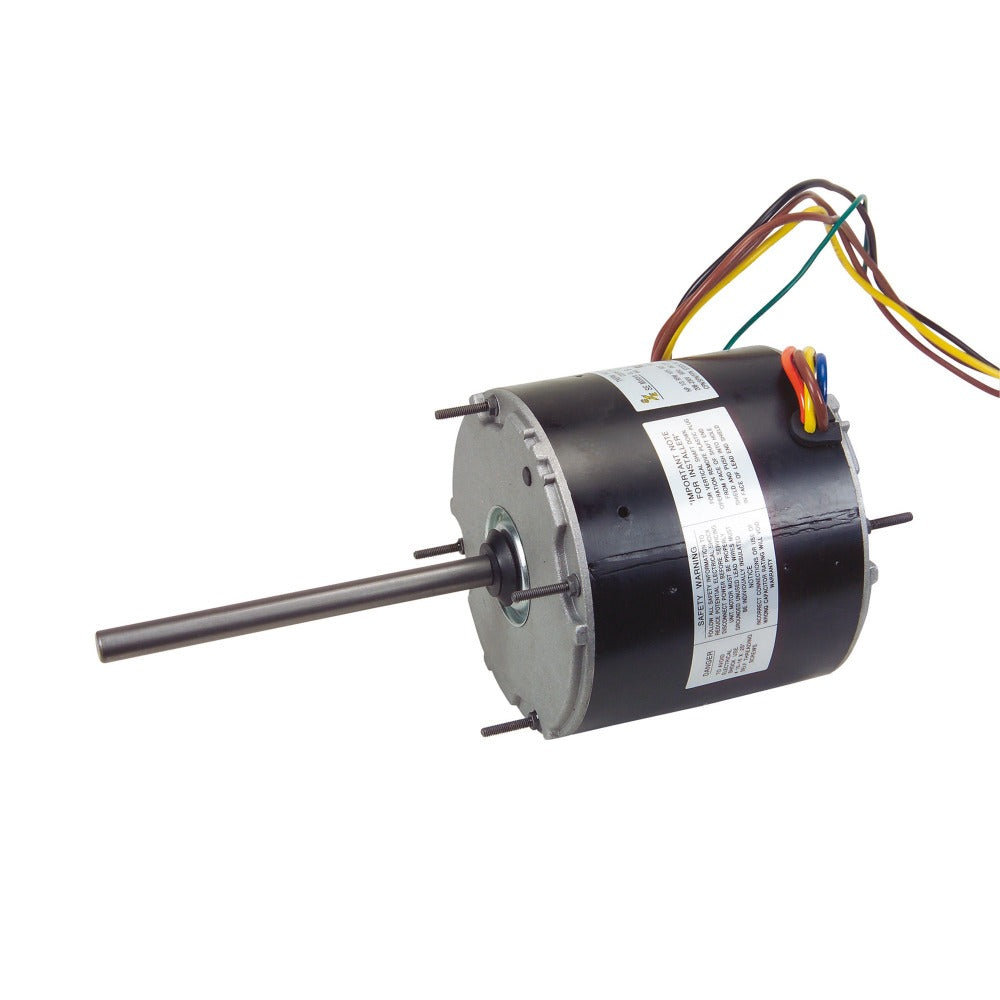

The RCD P257-8729 vertical condenser fan motor is designed for shaft-up or shaft down applications. It operates at 208/230V and 1075 RPM. It is suitable for air conditioning or heat pump applications. The motor has enclosed end shields for weather protection and a weep hole for condensate drainage.

• Up/down design
• Reversible rotation
• Water slinger on shaft
• Thru bolt or band mounting

Product Highlights

The RCD P257-8729 condenser fan motor is a 1/3 HP motor with a speed of 1075 RPM and voltage of 208/230V.

Product Information

Standard Information

• Brand: RCD
• Manufacturer Part Number: P257-8729

Technical Specifications

• HP: 1/3
• RPM: 1075
• FLA: 2.4
• SPEED: ALL
• VOLTAGE: 208/230V
• CAPACITOR: 7.5/370
• Ambient Temperature: 60 °C
• Motor Type: PSC
• Number of Speeds: 1
• Hertz: 60
• Safety Standards California Prop 65: Yes
• Operating Weight (lbs): 20
• Exterior Dimensions (D) (inches): 12.230000
• Exterior Dimensions (W) (inches): 5.500000
• Exterior Dimensions (H) (inches): 12.230000
• Shipping Weight (lbs): 20.000000
