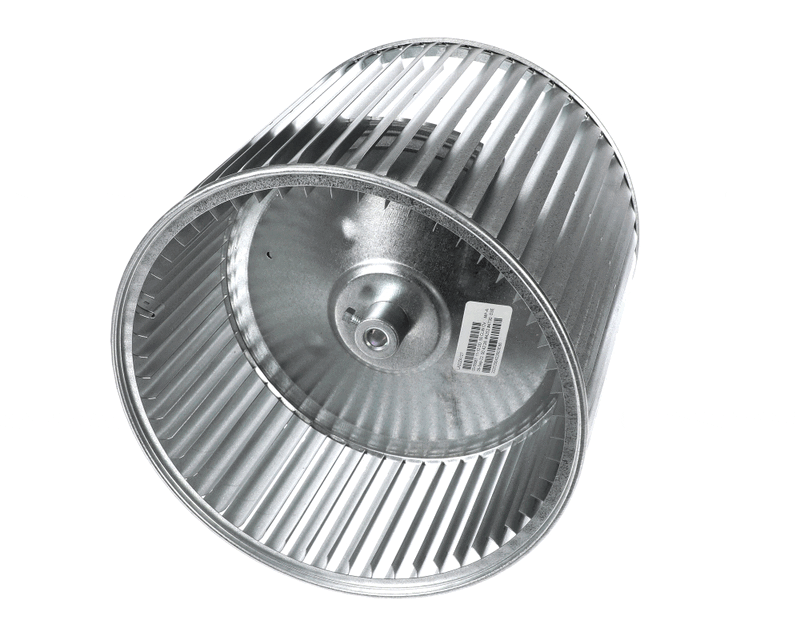

Rcd la22za127 Blower Wheel 11x10 Inch Half Inch Bore

Product Description

The RCD la22za127 is a genuine OEM-replacement blower wheel designed for residential gas furnace applications. Measuring 11 inches in diameter and 10 inches in height with a 1/2 inch bore, this wheel mounts directly to the blower motor shaft and moves conditioned air through the heat exchanger and into the supply ductwork. It is the core component responsible for airflow volume and distribution across the ventilation system. Weighing 8.364 pounds and packaged in a 13.5 x 13.5 x 13 inch box, the wheel is built to OEM fit and balance tolerances, which keeps vibration low and motor load consistent during operation.

This blower wheel is used in residential forced-air gas furnace systems. It is a direct replacement for units including the 58CVA110 10120, 58CU0A080C211220, and 58CU0A080C211120, among others. It is typically installed during blower assembly service when the existing wheel shows visible damage, debris buildup that cannot be cleaned, or imbalance causing noise and reduced airflow. HVAC technicians performing heat exchanger inspections or blower section maintenance are the primary installers of this component.

Key Features

• 11 inch diameter and 10 inch height for direct OEM-equivalent airflow performance
• 1/2 inch bore sized for standard furnace blower motor shafts
• OEM-style construction maintains balance tolerances to reduce vibration and motor strain
• Genuine replacement fit eliminates modification or shimming at installation
• Compatible with multiple residential furnace model numbers

Compatibility

Confirmed compatible with furnace models including 58CVA110 10120, 58CU0A080C211220, and 58CU0A080C211120. Additional compatible models may apply; verify against the full model fitment list before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out electrical power to the furnace before opening the blower compartment. Remove the blower assembly from the cabinet before attempting wheel removal or installation. Confirm shaft diameter and rotation direction match the existing motor before securing the set screw on the bore.

Technical Specifications

• Wheel Diameter: 11 inches
• Wheel Height: 10 inches
• Bore Size: 1/2 inch
• Package Length: 13.5 inches
• Package Width: 13.5 inches
• Package Height: 13 inches
• Weight: 8.364 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: la22za127
