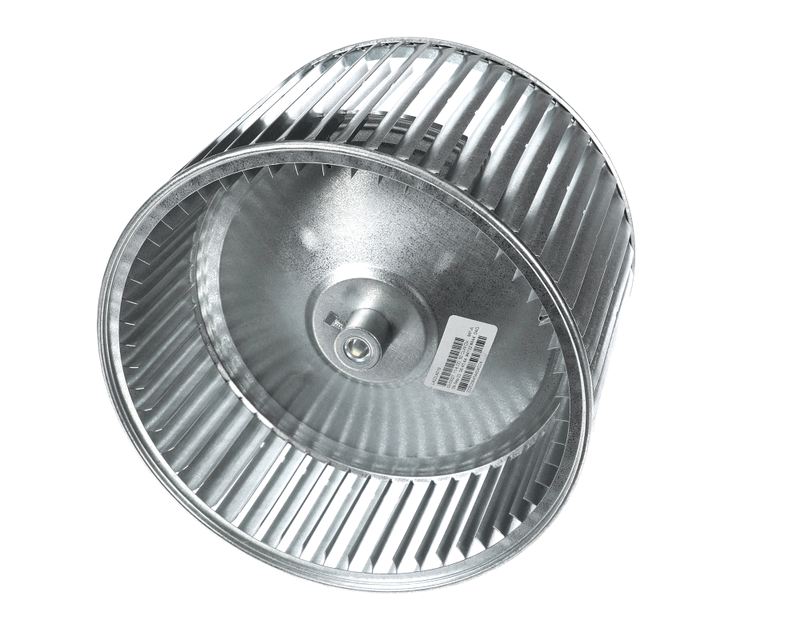

Rcd la22la019 Blower Wheel 11-7/8 in Furnace Replacement

Product Description

The RCD la22la019 is a genuine OEM-replacement blower wheel designed for residential gas furnace applications. The wheel circulates conditioned air through the heat exchanger and into the supply duct system, maintaining consistent airflow across heating and cooling cycles. It measures 11-7/8 inches in diameter with a 1/2 inch bore and rotates in a clockwise direction when viewed from the drive side. At 7.11 pounds, the wheel is built to the dimensional and balance tolerances required for quiet, reliable operation inside a furnace air handler cabinet. Licensed HVAC technicians typically handle replacement of this component during scheduled maintenance or when airflow deficiencies are diagnosed.

This blower wheel is used in residential forced-air furnace systems. It is suited to units that require a clockwise-rotation, 11-7/8 inch diameter wheel with a 1/2 inch bore. Compatible units listed in supplier data include 58CTW070---11116, 58CTA070 14116, and 58CTW070---10116, among others. Verify the full model fit list before ordering to confirm applicability to the specific unit being serviced.

Key Features

• 11-7/8 inch diameter with 1/2 inch bore for direct OEM-style fitment
• Clockwise rotation direction as viewed from the drive side
• OEM-replacement quality built to manufacturer dimensional and balance specifications
• Designed for residential forced-air furnace blower assemblies
• Weighs 7.11 pounds, consistent with factory-spec construction

Compatibility

Compatible units include 58CTW070---11116, 58CTA070 14116, and 58CTW070---10116. Consult the full model fit list from the supplier or manufacturer to confirm compatibility with the specific furnace being serviced.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the furnace at the disconnect switch and breaker before accessing the blower compartment. Confirm rotation direction and bore size match the existing assembly before seating the wheel on the motor shaft. Torque the set screw to the motor shaft per the furnace manufacturer service manual, and verify wheel clearance within the housing before restoring power.

Technical Specifications

• Diameter: 11-7/8 inches
• Bore: 1/2 inch
• Rotation Direction: Clockwise
• Length: 13 inches
• Width: 13 inches
• Height: 12.5 inches
• Weight: 7.11 pounds
• Equipment Type: Furnace Parts

Standard Information

• Brand: RCD
• Manufacturer Part Number: la22la019
