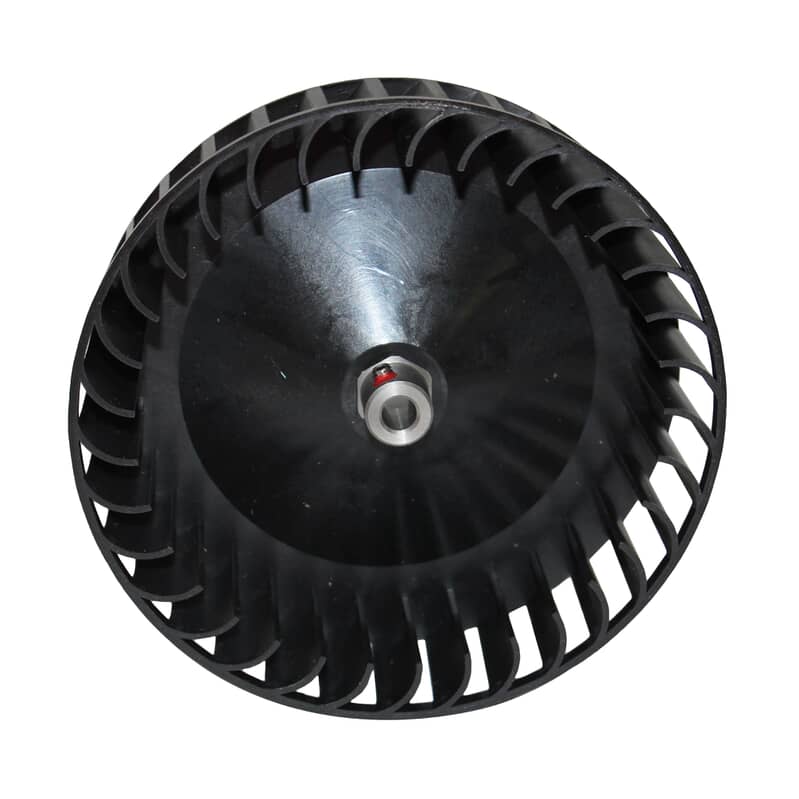

Rcd la11zd058 Draft Inducer Blower Wheel Cw 5/16 Bore

Product Description

The RCD la11zd058 is a draft inducer blower wheel designed to move combustion air through the heat exchanger and flue path in gas furnace systems. Operating at 1400 RPM with clockwise rotation, this wheel measures 5 5/8 inches in diameter by 1 1/2 inches wide and accepts a 5/16 inch bore shaft. It is built as an OEM-style replacement part, matching the original fit, balance, and rotational spec to maintain proper draft performance. Licensed HVAC technicians install this component during inducer motor service or blower wheel replacement on residential gas furnace applications.

This blower wheel is suited for residential gas furnace installations where the draft inducer assembly requires replacement due to imbalance, wear, or physical damage. It is a direct-fit replacement that restores correct airflow through the inducer housing without modification. Compatible models include 58SXA100 100JG, 398AAV048080GAKA, and 398AAZ060100AAKA. Proper wheel balance is critical to low-noise operation and consistent flue draft pressure.

Key Features

• Clockwise rotation matches OEM inducer motor shaft direction
• 5 5/8 inch diameter by 1 1/2 inch width for accurate housing fit
• 5/16 inch bore accommodates standard inducer motor shaft size
• 1400 RPM rated speed for consistent draft airflow performance
• OEM-style replacement for direct fit without field modification

Compatibility

Compatible with Carrier furnace models 58SXA100 100JG, 398AAV048080GAKA, and 398AAZ060100AAKA as stated in product data.

Installation Notes

Installation of a draft inducer blower wheel should be performed by a licensed HVAC technician. Shut off power to the furnace at the disconnect and allow the system to cool before disassembling the inducer housing. Verify shaft bore alignment and secure the set screw to manufacturer torque specifications using appropriate hand tools. Follow all applicable local mechanical codes and IFGC guidelines when servicing furnace combustion-air components.

Technical Specifications

• Diameter: 5 5/8 inches
• Width: 1 1/2 inches
• Bore Size: 5/16 inches
• Rotation: Clockwise
• RPM: 1400
• Application: Draft Inducer

Standard Information

• Brand: RCD
• Manufacturer Part Number: la11zd058
