Rcd ht680054 Hvac Transformer 40VA 120 to 24 Volt

Product Description

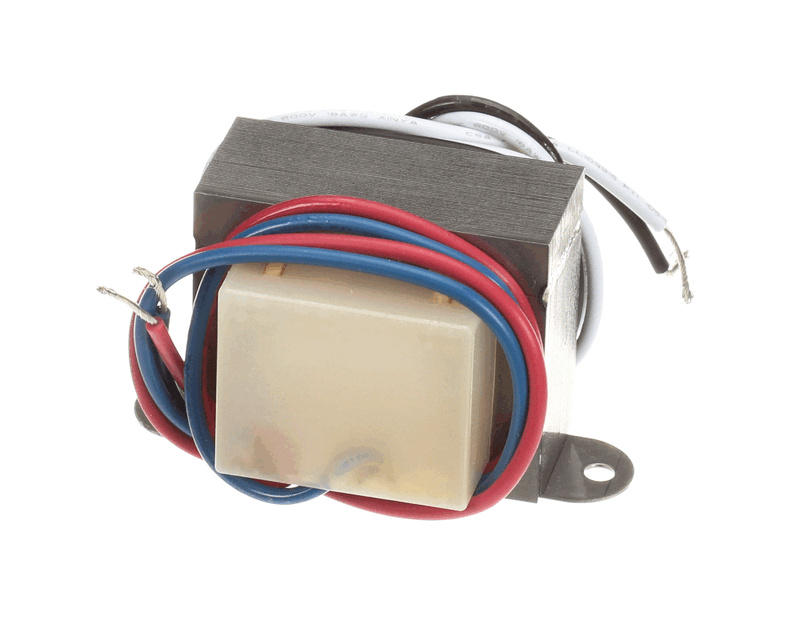

The RCD ht680054 is a low-voltage control transformer designed for residential and light commercial HVAC systems. It steps down primary voltage from 120 volts to a 24-volt secondary output, supplying the low-voltage control circuit that drives thermostats, contactors, and control boards. Rated at 40 VA and tuned to 60 Hz, this transformer delivers consistent, stable output under normal system load. Measuring 3.8 inches long, 2.85 inches wide, and 2.45 inches tall, it is compact enough to fit standard equipment enclosures. Licensed HVAC technicians performing control-circuit service or system replacements are the primary installers.

This transformer is suited for residential split systems, packaged units, air handlers, and similar HVAC equipment requiring a 120-volt primary and 24-volt secondary control circuit. It is an OEM-replacement-style part intended for systems that originally specify a 120V-to-24V, 40 VA transformer operating at 60 Hz. It is appropriate for both new installations and service replacements where the original transformer has failed or been damaged.

Key Features

• 120-volt primary to 24-volt secondary step-down conversion
• 40 VA power rating supports standard HVAC control circuit loads
• 60 Hz frequency matches North American power supply standards
• Compact footprint: 3.8 x 2.85 x 2.45 inches for installation in tight equipment cabinets
• OEM-replacement design engineered to factory specifications

Compatibility

Designed as an OEM-style replacement transformer for HVAC systems requiring a 120-volt primary, 24-volt secondary, 40 VA, 60 Hz control transformer.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing the transformer. Verify that the replacement transformer ratings match the system requirements before energizing. Follow all applicable NEC guidelines for low-voltage control wiring during installation.

Technical Specifications

• Primary Voltage: 120 volts
• Secondary Voltage: 24 volts
• Power Rating: 40 VA
• Frequency: 60 Hz
• Length: 3.8 inches
• Width: 2.85 inches
• Height: 2.45 inches
• Weight: 1.33 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: ht680054
