Rcd hd44mm130 Blower Motor 1/2 Hp 115V Variable Speed

Product Description

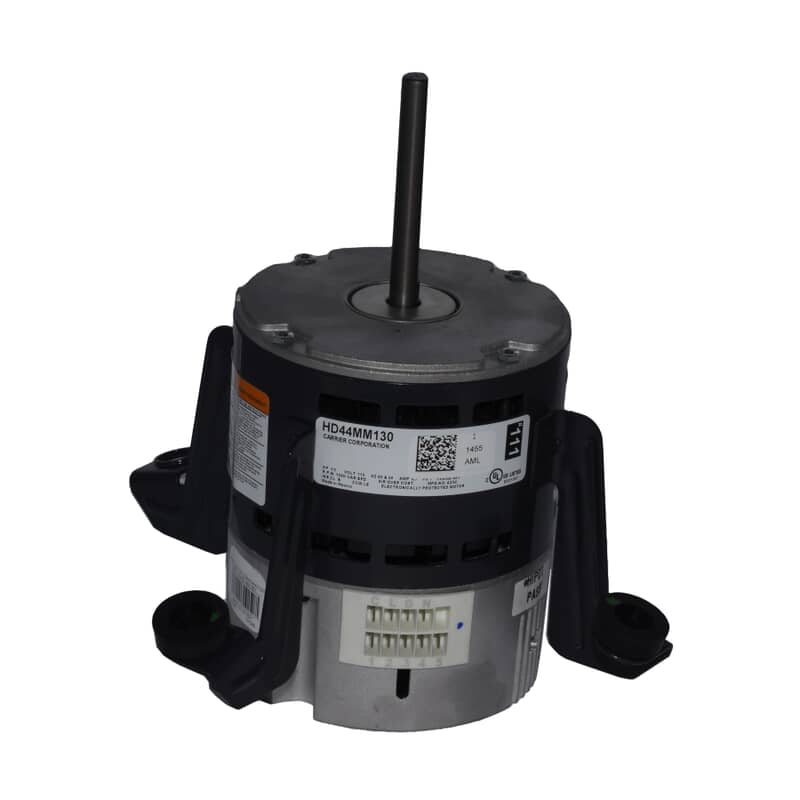

The RCD hd44mm130 is a variable-speed ECM-style blower motor with an integrated control module, designed for forced-air HVAC systems. Rated at 1/2 HP and 115 volts single-phase, it operates at a base speed of 1050 RPM with variable-speed capability for precise airflow management. Rotation is counterclockwise from the lead end (CCW LE). The unit accepts both 50 Hz and 60 Hz input, making it suitable across a range of residential and light-commercial applications. Licensed HVAC technicians handle installation as part of air handler or furnace blower assembly service.

This motor is used in residential and light-commercial forced-air systems where variable-speed blower operation is required. The integrated control module simplifies the electrical interface compared to a standalone motor and separate board. Typical install scenarios include air handler blower replacements and furnace inducer upgrades where OEM-style fitment is required. The 15.55-inch length and 11.1-inch width make it a direct-fit candidate in equipment designed around this motor frame size.

Key Features

• Variable-speed operation with integrated control module for precise airflow control
• Rated 1/2 HP at 115 volts, 1050 RPM base speed
• Single-phase, 50/60 Hz compatible for broad application use
• Counterclockwise rotation from lead end (CCW LE)
• OEM-style replacement designed to fit right the first time, reducing repeat service calls

Compatibility

Designed as an OEM-style replacement blower motor with control module for residential and light-commercial forced-air HVAC systems requiring a 115V, 1/2 HP, variable-speed motor of this frame size.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing blower assembly. Confirm motor rotation direction and control module wiring match the equipment wiring diagram before energizing. Work should comply with applicable local electrical codes and the NEC.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 115 volts
• Phase: 1-phase
• Frequency: 50/60 Hz
• Speed: Variable (1050 RPM base)
• Rotation: CCW Lead End
• Length: 15.55 inches
• Width: 11.1 inches
• Height: 10.95 inches

Standard Information

• Brand: RCD
• Manufacturer Part Number: hd44mm130
