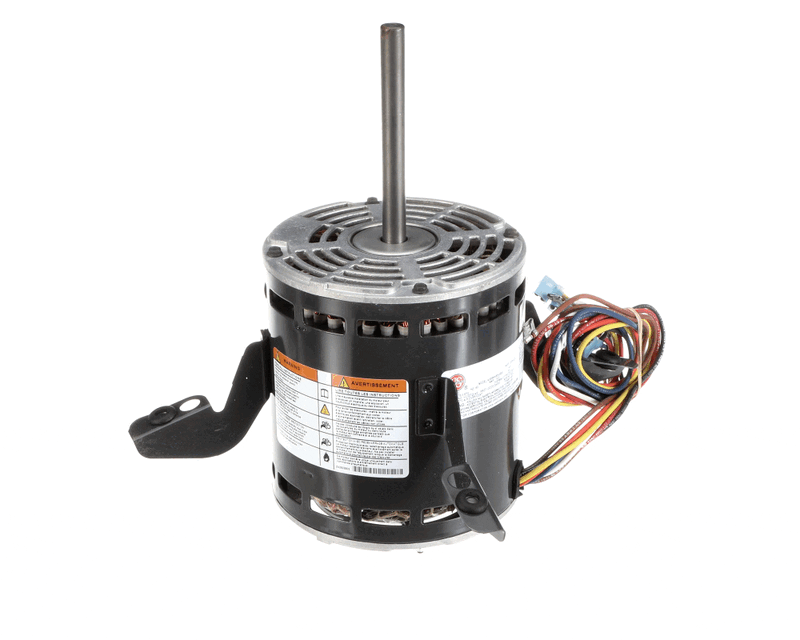

Rcd hc52tq145 Blower Motor 1 Hp 115V 1075 Rpm 5 Speed

Product Description

The RCD hc52tq145 is a direct-drive blower motor rated at 1 HP, 115 volts, single phase, designed to circulate conditioned air through residential and light commercial HVAC systems. Running at 1075 RPM with five selectable speed taps, this motor gives installing technicians the flexibility to match airflow to a wide range of duct configurations and system demands. Weighing 23 pounds and measuring 15 inches in length with an 11-inch width and height, this is a substantial, full-size motor built for air handler and furnace blower applications. Licensed HVAC technicians performing motor replacements will find it engineered to OEM replacement specifications for reliable long-term operation.

This motor is suited for forced-air HVAC applications including gas furnaces, electric air handlers, and fan coil units that require a single-phase, 115-volt direct-drive blower motor. The five-speed capability makes it adaptable across heating, cooling, and continuous fan modes within the same system. Typical installations involve residential systems where the original motor has failed due to age, bearing wear, or thermal overload. The hc52tq145 serves as a replacement unit in systems originally spec'd for a 1 HP, 1075 RPM, multi-speed blower motor.

Key Features

• 1 HP output for robust airflow delivery in full-size air handler and furnace blower assemblies
• Five selectable speed taps allow airflow tuning to match system static pressure requirements
• 115 volt, single-phase power supply compatible with standard residential electrical service
• 1075 RPM operating speed suited to direct-drive blower wheel applications
• OEM replacement specification construction supports reliable long-term service life

Compatibility

Designed as an OEM-style replacement blower motor for residential and light commercial forced-air HVAC systems requiring a 1 HP, 115 volt, single-phase, 1075 RPM, 5-speed direct-drive motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor or accessing the blower compartment. Confirm voltage, horsepower, rotation direction, and shaft diameter match the application before mounting. Secure all speed-tap wiring connections per the equipment manufacturer wiring diagram and verify motor rotation before returning the system to service.

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115 volts
• Phase: Single phase
• Speed: 1075 RPM
• Number of Speeds: 5
• Length: 15 inches
• Width: 11 inches
• Height: 11 inches
• Weight: 23 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: hc52tq145
