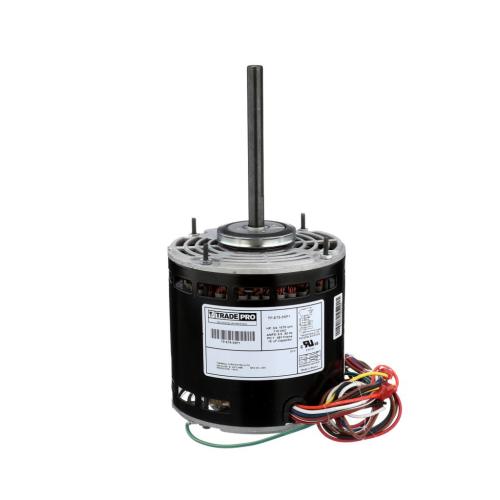

Rcd hc45te114 Evaporator Fan Motor 3/4 Hp 115V

Product Description

The RCD hc45te114 is a 3-speed evaporator fan motor rated at 3/4 horsepower, 1075 RPM, and 115 volts. It is designed for use in residential and light commercial HVAC systems where reliable air movement across the evaporator coil is required. This motor drives the indoor blower that circulates conditioned air through the duct system. Licensed HVAC technicians typically source this motor as a direct replacement during routine service calls or system repairs. The multi-speed configuration allows it to serve a range of airflow applications depending on how it is wired at the control board.

This evaporator fan motor is suited for use in forced-air central air conditioning and heat pump air handler systems. It fits applications where a 3-speed, 115-volt PSC-style blower motor is required. The motor is appropriate for residential equipment and small commercial air handlers that fall within its horsepower and voltage range. Installers often encounter this motor in split-system and package unit configurations where the indoor blower must be replaced due to bearing failure, winding damage, or reduced airflow performance.

Key Features

• 3-speed operation allows flexible airflow configuration
• 3/4 HP output suitable for residential and light commercial air handlers
• 1075 RPM rated speed for consistent blower performance
• 115-volt single-phase power supply compatibility
• Direct replacement design for evaporator blower motor service work

Compatibility

Designed as an OEM-style replacement evaporator fan motor for residential and light commercial forced-air HVAC systems requiring a 3-speed, 3/4 HP, 115-volt motor at 1075 RPM.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power to the air handler before removing the existing motor or accessing any wiring. Verify that the replacement motor shaft diameter, rotation direction, and mounting configuration match the original before completing the install. Do not energize the motor until all wiring connections are secured and the blower wheel is properly fastened to the shaft.

Technical Specifications

• Horsepower: 3/4 HP
• Speed: 3-speed
• RPM: 1075
• Voltage: 115 volts

Standard Information

• Brand: RCD
• Manufacturer Part Number: hc45te114
