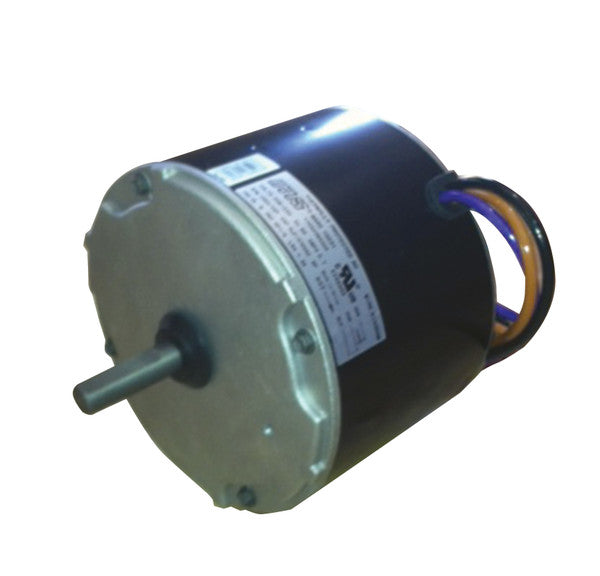

Rcd HC33GE233 Condenser Motor 1/10hp 1100rpm 208/230V

Product Description

The RCD HC33GE233 is a 1/10 HP condenser motor operating at 1100 RPM and 208-230V. This PSC motor features a TEAO enclosure and automatic thermal protection. It is designed with ball bearings and a CW rotation, suitable for various applications. It Replaces Carrier HC33GE233.

• Replaces Carrier HC33GE233
• Motor Type PSC
• Enclosure TEAO
• Voltage 208-230

Product Highlights

The RCD HC33GE233 condenser motor is a direct replacement for Carrier HC33GE233, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: RCD
• Manufacturer Part Number: HC33GE233
• Country of Origin: CN

Technical Specifications

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/10
• Voltage: 208-230
• Speeds: 1
• Hz: 60
• Rotation: CW
• RPM Range: 1100
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 0.77
• Mount: Thru Bolt/All Angle
• Bearing: Ball
• Shaft Length Inches: 1.8
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Brand: MARS
• Length: 14.80 in.
• Width: 6.60 in.
• Height: 7.40 in.
• Weight: 8.9000 lbs
• MFG Name: Carrier/Totaline RCD
• MFG #: HC33GE233
