Nvent Caddy 4100350EG Clevis Hanger Light Duty 3 1/2in Pipe 1/2in Rod

Product Description

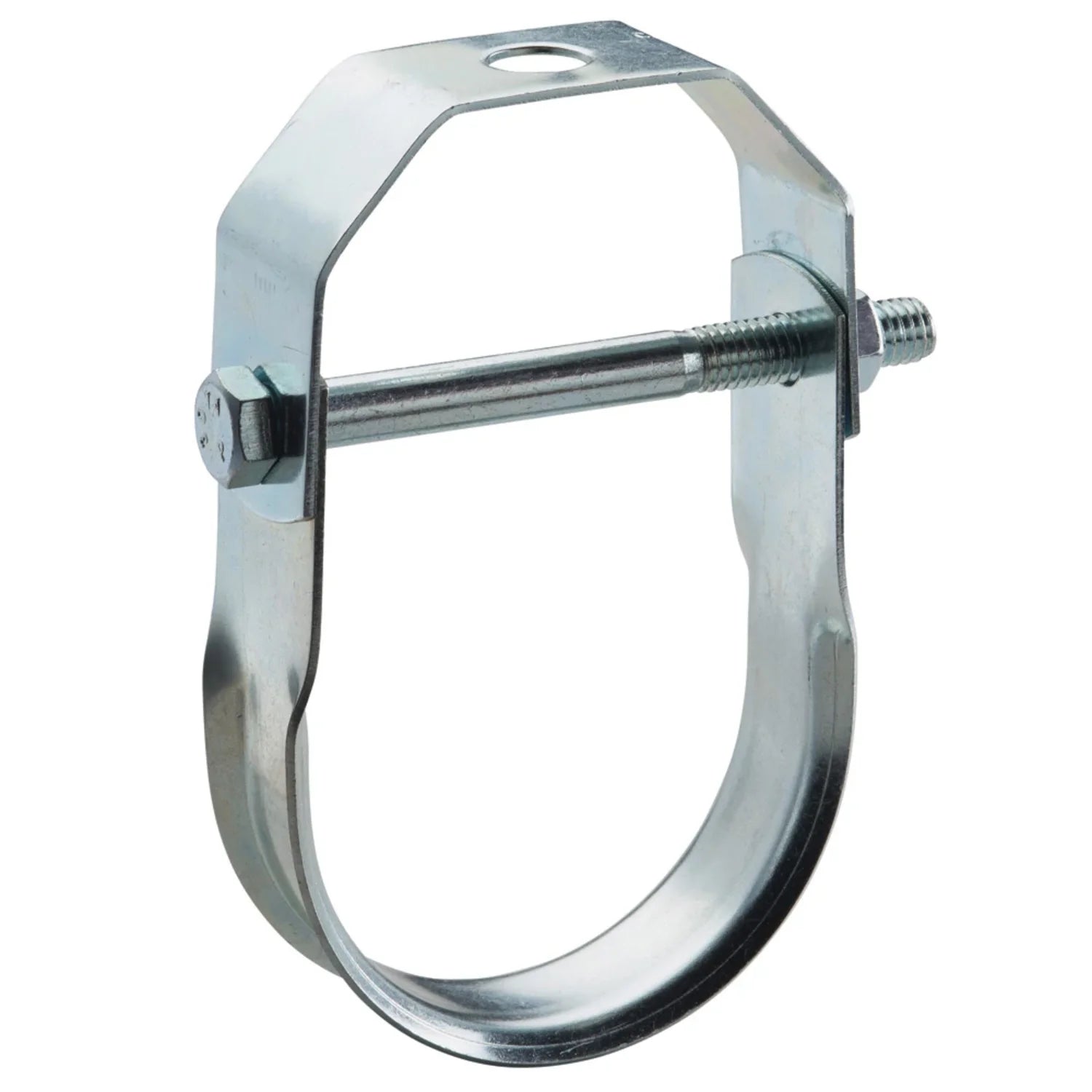

The Nvent Caddy 4100350EG Clevis Hanger is a light-duty hanger designed for suspending stationary non-insulated pipe lines and insulated pipe lines. Flared edges prevent sharp surfaces from contacting the pipe, and the clevis bottom pivots to allow pipe to be fed from either direction.

• Recommended for the suspension of stationary non-insulated pipe lines
• Commonly used for the suspension of insulated pipe lines
• Flared edges help prevent sharp surfaces from coming into contact with the pipe (1/2" to 8" pipe sizes)

Product Highlights

The Nvent Caddy 4100350EG clevis hanger is suitable for pipe sizes of 3 1/2", with a 4" outer diameter and 1/2" rod size. It is made of steel with an electrogalvanized and pregalvanized finish.

Product Information

Standard Information

• Brand: HANGERS
• Manufacturer Part Number: 4100350EG

Technical Specifications

• Brand: nVent Caddy
• Part Number: 4100350EG
• Material: Steel
• Finish: Electrogalvanized;Pregalvanized
• Pipe Size: 3 1/2"
• Outer Diameter: 4"
• Rod Size: 1/2"
• A: 6 13/16"
• B: 4"
• C: 1 5/16"
• Static Load: 250 lb
• Static Load (F): 400lb
• UPC: 782856366867
• EAN: 0782856366867
• Standard Packaging Quantity: 25
• Packing Quantity: 1
