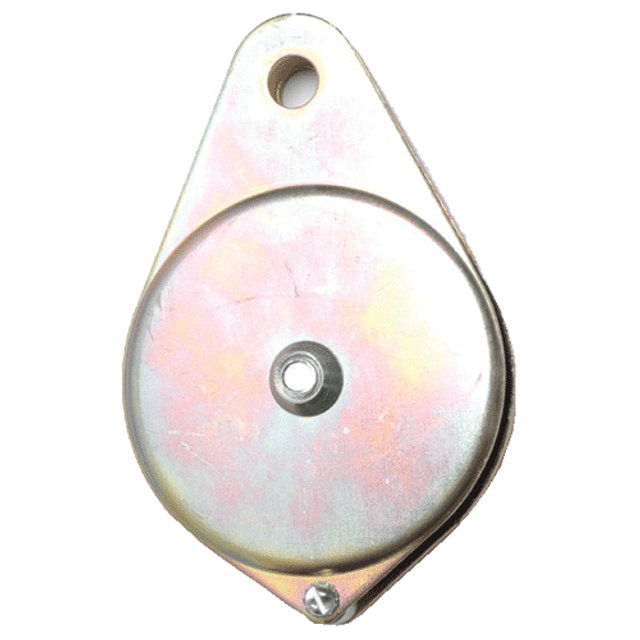

Msa Safety 506222 Split Mount Pulley Confined Space Entry

Product Description

The MSA SAFETY 506222 is a split mount pulley designed for confined space entry and rescue operations. It attaches to compatible tripod and davit systems to lift or lower materials and personnel during confined space work. The split mount design allows for quick attachment without threading a rope or lifeline through the block, saving setup time in the field. This pulley meets OSHA regulations and holds ANSI A10.32 and CSA certifications, making it suitable for use in compliant confined space entry programs. It is installed and used by safety professionals, industrial riggers, and confined space entry teams.

This pulley is used in industrial and construction environments where confined space entry is required. Typical applications include non-entry rescue operations, personnel retrieval, and material handling in tanks, vaults, manholes, and similar restricted spaces. The lightweight, portable design makes it practical for job sites where equipment must be transported and set up quickly. It also finds application in welding and painting operations where materials or workers must be raised or lowered into a confined space.

Key Features

• Split mount design allows attachment without rethreading a lifeline or rope
• Supports both lifting and lowering of materials and personnel
• Meets OSHA confined space regulations
• ANSI A10.32 and CSA certified for compliant safety programs
• Portable and field-ready for rapid deployment
• Suitable for non-entry rescue of confined space entrants

Compatibility

Designed for use with MSA Workman Tripod Systems, the Lynx tripod, and the Lynx Davit range of hoists.

Installation Notes

Installation and operation should be performed by trained confined space entry professionals familiar with OSHA 29 CFR 1910.146 and applicable ANSI standards. Before attaching the pulley to any tripod or davit system, verify that the anchor point and host structure are rated for the intended load. Inspect the pulley for wear, cracks, or damage before each use and remove it from service if any defects are found. Do not exceed the rated working load for the pulley or the tripod system it is mounted to.

Technical Specifications

• Certifications: ANSI A10.32, CSA
• Regulatory Compliance: OSHA confined space regulations
• Mount Type: Split Mount

Standard Information

• Brand: MSA SAFETY
• Manufacturer Part Number: 506222
