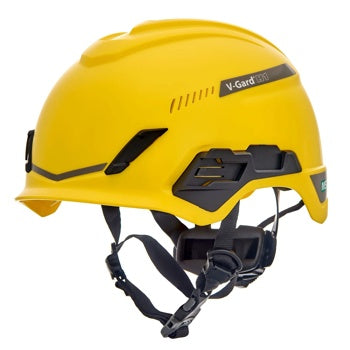

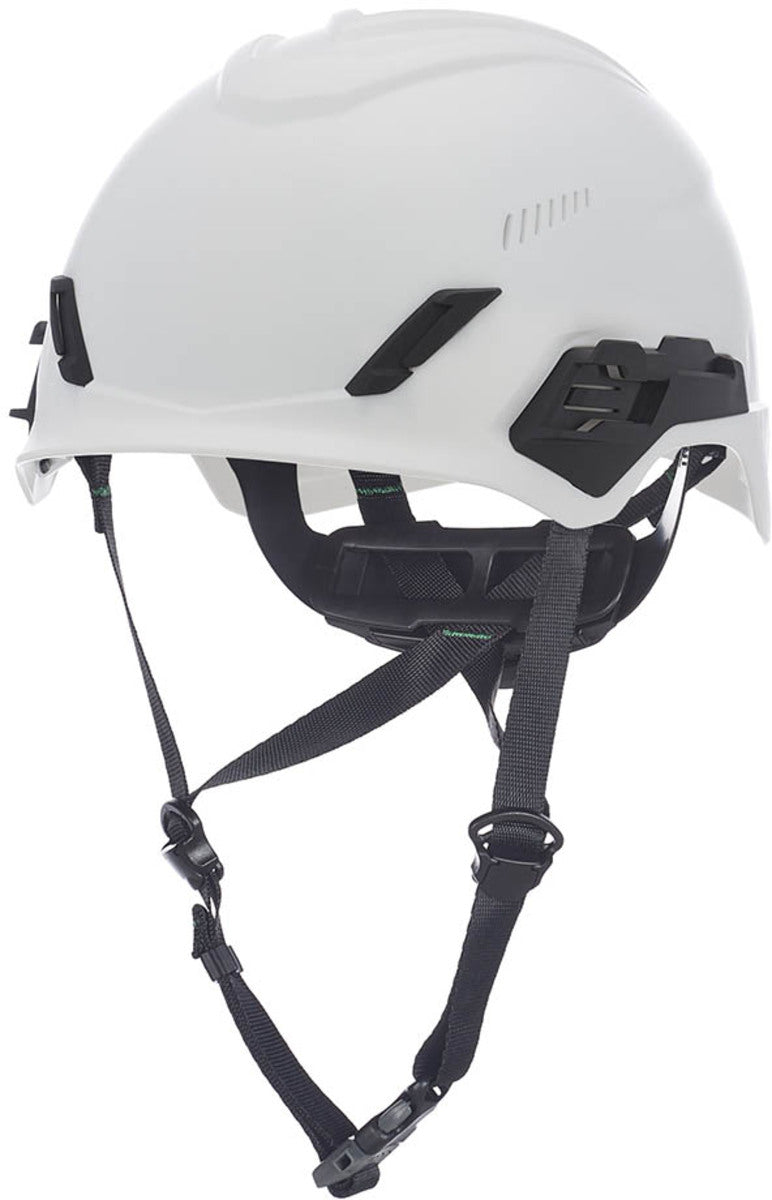

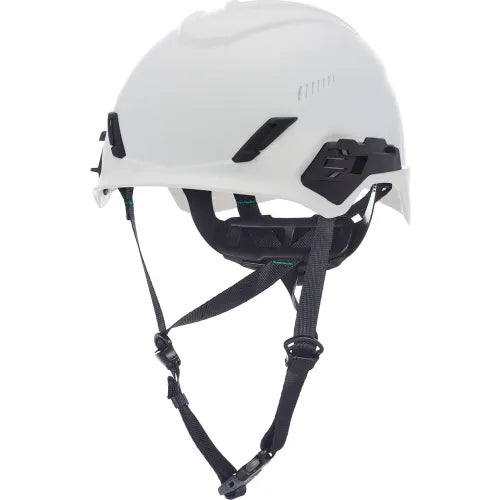

Msa Safety 10236204 V-Gard H1 Safety Helmet (Standard) 10236204

Product Description

MSA Safety 10236204 is a V-Gard H1 safety helmet intended for above-the-neck applications including tower climbing, forestry, rescue, confined spaces, turnarounds, and plant maintenance. The helmet uses a high-density polyethylene shell with Fas-Trac III suspension and a non-contact foam liner to provide ventilation and hygiene. It is available in vented and non-vented configurations and meets relevant regional impact and retention standards.

• Fas-Trac III 4-point suspension (non-pivot ratchet) and field-replaceable 4-point chinstrap for fit and retention
• Non-contact foam liner and Trivent ventilation with vented and non-vented (Class E) options for airflow and electrical applications
• Accessory attachment rail with universal lighting clips, premium moisture-wicking removable headband, and integrated rescue whistle in chin strap buckle

Product Highlights

V-Gard H1 helmet with HDPE shell, Fas-Trac III suspension, vented/non-vented options, and compliance with ANSI/ISEA Z89.1-2014, CAN/CSA Z94.1-2015 and EN 12492.

Product Information

Standard Information

• Brand: MSA SAFETY
• Manufacturer Part Number: 10236204

Technical Specifications

• Brand: MSA Safety
• Manufacturer Part Number: 10236204
• Product Name: V-Gard H1 Safety Helmet
• Model/Series: V-Gard H1
• Shell Material: High density polyethylene (HDPE)
• Shell Type: Trivent (vented) / non-vented option available
• Suspension Type: Fas-Trac III non-pivot ratchet
• Suspension Points: 4-point
• Vented: Yes (Trivent); non-vented option available for electrical Class E use
• Hard Hat Type: Type I
• Hard Hat Class: Class G (vented); non-vented option meets Class E electrical rating
• Head Size Range: 6 1/2 - 8
• Dimensions (H x L x W): 161 mm x 255 mm x 214 mm (6.339 x 10.039 x 8.425 in)
• Weight: 0.520 kg (1.146 lb)
• Shelf Life: Shell = 5 years; Suspension = 1 year
• Certifications: ANSI/ISEA Z89.1-2014; CAN/CSA Z94.1-2015; EN 12492
• Applications: Working at heights, tower climbing, forestry, rescue, confined spaces, turnarounds, plant maintenance
• Accessory Attachment: Push-button accessory attachment rail with universal lighting clips
• Chinstrap: Field-replaceable 4-point chinstrap with multiple adjustment points
• Headband: Premium moisture-wicking removable headband with Velcro attachment
• Liner: Non-contact foam liner for airflow and hygiene
• Brim Style: Short brim / low-profile (V-Gard H1 style)
• UNSPSC: 46181701
