Msa Safety 10194672 V-FIT Safety Harness SX-Large

Product Description

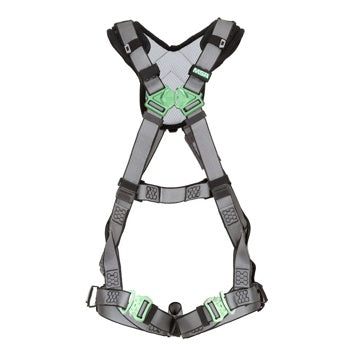

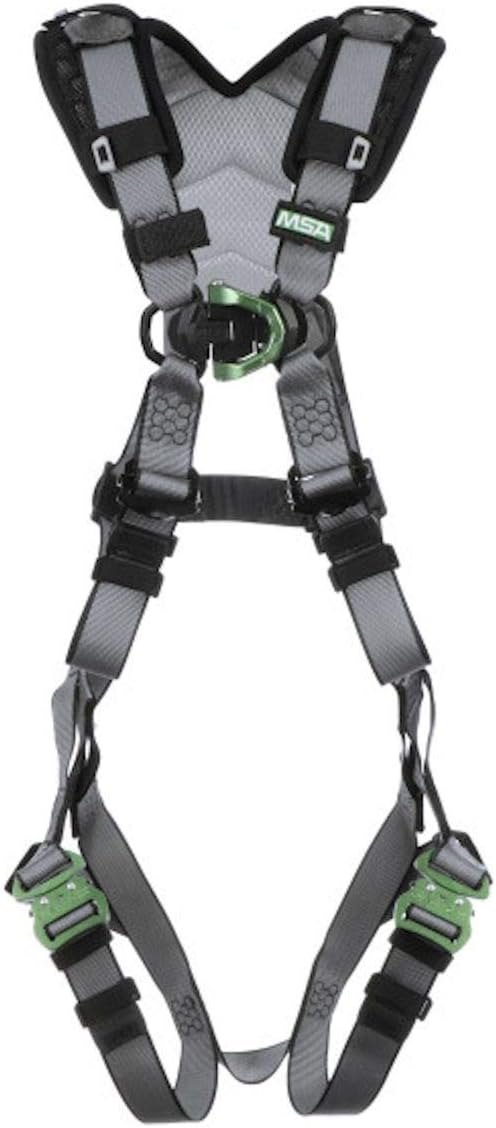

The MSA SAFETY 10194672 V-FIT Safety Harness is an SX-LARGE full-body harness for fall protection. It features a back D-ring and quick-connect leg straps for secure wear. Constructed with polyester webbing and aluminum hardware, this harness includes shoulder padding for comfort. Its RaceFLEX connection provides a streamlined fit, and a dedicated attachment point for Personal Fall Limiters is included. This harness meets ANSI/ASSP Z359.11-2021 and CSA Z259.10 standards, supporting a 400 lbs weight capacity.

• Super Extra Large size with a back D-Ring.
• Quick-Connect Leg Straps and shoulder padding for comfort.

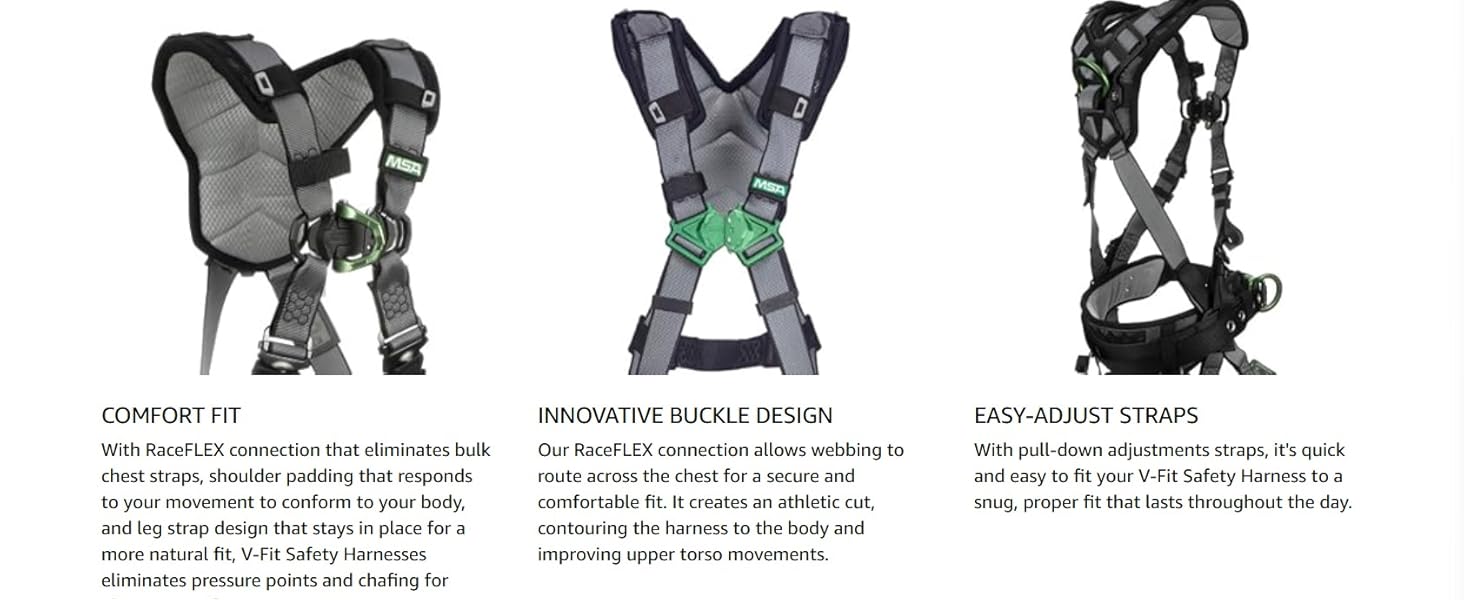

• Features a RaceFLEX connection and dedicated PFL tunnel for enhanced safety.

Product Highlights

This V-FIT Safety Harness offers secure fall protection with an athletic cut, quick-connect features, and comfortable padding.

Product Information

Standard Information

• Brand: MSA SAFETY
• Manufacturer Part Number: 10194672

Technical Specifications

• Standards: ANSI/ASSP Z359.11-2021, CSA Z259.10
• D-Ring Extender: No
• Hardware Material: Aluminum
• Harness Belt Included: No
• Chest Connection Material: Aluminum
• Chest Connection Type: Quick-Connect
• D-Ring Location: Back
• D-Ring Material: Aluminum
• Lanyard Keepers Included: Yes
• Leg Connection Material: Aluminum
• Leg Connection Type: Quick-Connect
• Number of D-Rings: 1
• PFL Tunnel Included: Yes
• Padding Locations: Shoulder
• Harness Saddle: None
• Safety Straps Included: No
• Harness Style: Vest
• Torso Adjustment: No
• Webbing Material: Polyester
• RFID: Yes
• Size: SX-Large
• Weight Capacity (OSHA/CSA Z259.10): 400 lbs (180 kg)
• Weight Capacity (ANSI Z359.11): 130–310 lbs (59–140 kg)
• Age Range: Adults
• Included Components: Harnesses
• Care Instructions: Hand Wash Only
• Fabric Type: Mesh
• Fabric Weight Class: Medium Weight
• Fabric Stretch: Low Stretch
• Use Cases: Construction, Work
• Pattern: Solid
• Fit Type: Standard
• Leg Strap Buckle Options: Quick Connect or Tongue Buckle
• Thread/Stitching Material: Polyester
• Web Keeper Material: Polyester, hook and loop closure
• Leg Buckles Material: Anodized forged aluminum, stainless steel tabs and adjuster
• Chest Buckle Material: Anodized forged aluminum, stainless steel tabs and adjuster
• PFL Adapter: Integrated polymer dedicated PFL attachment point
• Padding Material: Breathable spacer mesh and foam
• Applications: Working at Heights, Turnarounds & Plant Maintenance
• Markets: Construction, General Industry, Oil & Gas, Utilities
• Configurations: Standard and construction
• International Approvals: Australia/NZ (Benchmark), Brazil (DSST) V-FIT, Brazil (DSST) V-FIT Construction, Canada (CSA), Chile (ISP), EU (DoC), EU (PPE), EU (PPE) Product of China, US (ANSI) V-FIT / V-FLEX
