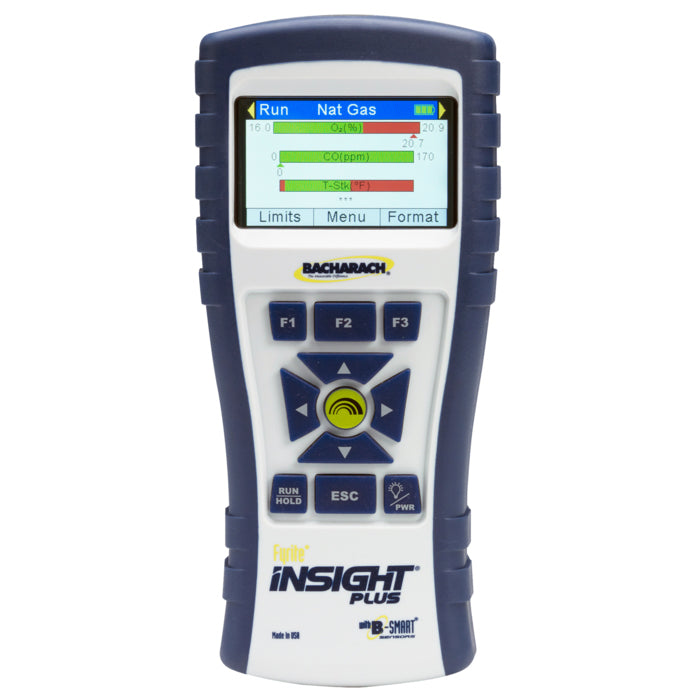

Msa Safety 0024-8518 Fyrite Insight Plus Long Life O2, CO, & Reporting Kit 4 Alkaline Batteries

Product Description

The MSA Safety 0024-8518 Fyrite Insight Plus Long Life O2, CO, & Reporting Kit is a handheld combustion analyzer designed for commercial, residential, and light-commercial HVAC applications. This instrument ensures safe operating conditions and accurately determines combustion efficiency. It features sensors for Oxygen (O2) and Carbon Monoxide (CO), with a built-in NOx filter, and calculates values like efficiency, CO2, and CO air-free. Powered by Tune-Rite software, it simplifies combustion tuning and provides real-time troubleshooting suggestions.

• Handheld combustion analyzer for commercial, residential, and light-commercial HVAC applications.
• Features O2 and CO sensors with a built-in NOx filter, ensuring accurate combustion efficiency monitoring.
• Utilizes Tune-Rite software for simplified tuning, real-time troubleshooting, and automatic sensor protection.

Product Highlights

The MSA Safety 0024-8518 Fyrite Insight Plus is a comprehensive handheld combustion analyzer with long-life O2 and CO sensors, Tune-Rite software, and reporting capabilities for efficient HVAC diagnostics.

Product Information

Standard Information

• Brand: MSA SAFETY
• Manufacturer Part Number: 0024-8518
• Country of Origin: United States

Technical Specifications

• Altitude: 1 ATM ± 10%
• Operating Temperature: 23 to 113 °F (-5 to 45 °C)
• Certifications: CE, EN 50379-1, EN 50379-3
• Communication Interfaces: USB 2.0 (mini-B), IrDA
• Display: 2.8 in (72 mm) Color LCD w/ backlight
• Fuel Equations: Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel, +2 optional custom fuels
• Measured Gases: Carbon Monoxide (CO), Oxygen (O2)
• Humidity: 15 to 90% RH (non-condensing)
• Internal Memory: 100 Records
• Measurement Range: O2 0 To 20.9%, CO 0-4000 ppm
• Power Source: 4 × Alkaline Batteries
• Printer: IrDA + Bluetooth Printer (Optional)
• Battery Life: 15 Hours (Alkaline Batteries)
• Sensors: Up to 2
• Flue Gas Temperature Range: -4 to 1202 °F (-20 to 650 °C)
• Warm-up Time: 30 To 60 Seconds
• Product Type: H0024-8518, INSIGHT PLUS REPORTING W-LL O2
