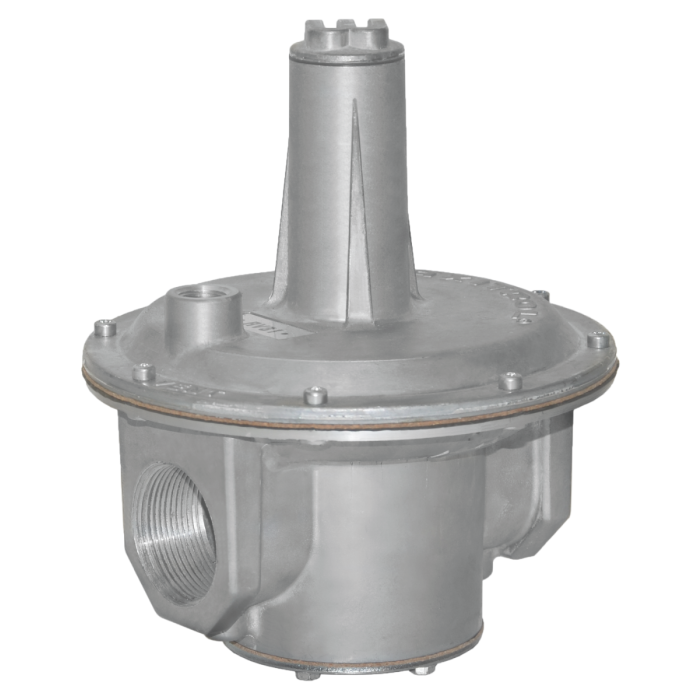

Maxitrol RV61-1010 Gas Pressure Regulator 1-1/4 in.

Product Description

The Maxitrol RV61-1010 Gas Pressure Regulator is designed for various gas regulation applications. This model features a one and one-quarter inch pipe size. It serves to maintain stable gas pressure for natural gas, manufactured gas, and propane systems.

• Multi-positional mounting options for easy installation.
• NPT connections ensure leak-proof fittings.
• Suitable for natural and mixed gases.

Product Highlights

This regulator delivers reliable performance across a range of temperatures. It is crafted from durable aluminum, designed to operate between negative forty to two hundred five degrees Fahrenheit. The unit maintains an output pressure of four inches water column.

Product Information

Standard Information

• Brand: Maxitrol
• Item Number: RV61-1010
• Material: Aluminum

Technical Specifications

• Pipe Size: 1-1/4 inches
• End Connection: NPT
• Inlet Pressure: 1 PSI
• Outlet Pressure: 4 inches WC set
• Temperature Range: -40 to 205 degrees Fahrenheit
• Spring Size: 3-6 inches
• Product Type: With R6110-38 Spring
