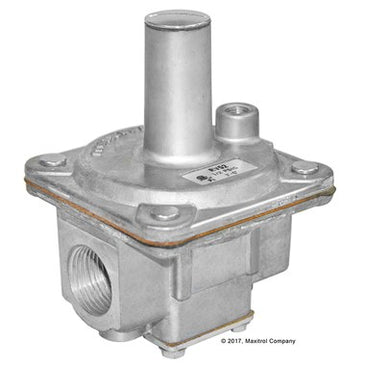

Maxitrol RV52-66 Regulator RV 3/4 Inch 3.5 Inches of Water Column Set 3-6 Inch Spring

Product Description

The Maxitrol RV52-66 Regulator is designed for accurate gas flow control in industrial settings. This regulator features a robust aluminum body and NPT end connections. It manages a pipe size of three-fourths of an inch with a water column set of three point five inches. The adjustable spring operates between three to six inches for flexible usage across applications.

• Durable aluminum material for long-lasting performance
• Adjustable spring for versatile applications
• NPT connections ensure secure and leak-proof operation

Product Highlights

The Maxitrol RV52-66 is suitable for a variety of industrial applications. It handles inlet pressure of half a PSI and can manage outlet temperatures up to two hundred five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Maxitrol
• Part Number: RV52-66

Technical Specifications

• Item Number: RV52-66
• Pipe Size: 3/4IN
• Inlet Pressure: 1/2 PSI
• Outlet Pressure: 3.5inWC SET
• Material: Aluminum
• Spring Size: 3-6IN Spring
• Temperature Range: -40 to 205 DEG F
• End Connection: NPT
