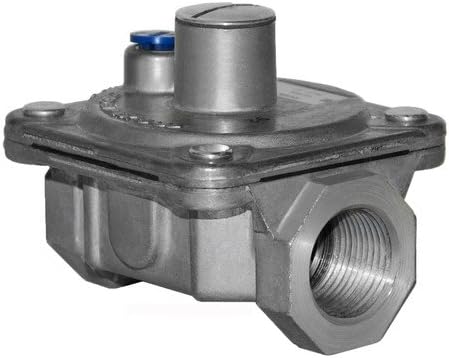

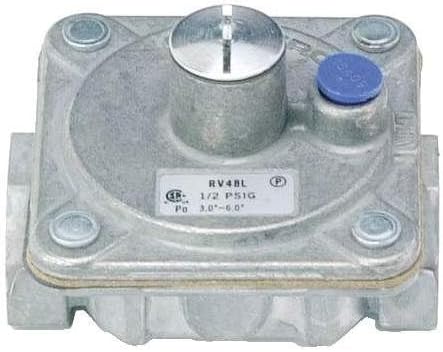

Maxitrol RV48L-1/2 1/2 inch Poppet Style Gas Regulator with Orifice Breather Hole

Product Description

Maxitrol's RV48L-1/2 poppet style gas regulator is designed for main burner and pilot load applications. It includes a breather hole with an orifice for effective gas regulation. Ideal for residential and commercial cooking appliances, hearth products, pilot lines, and residential water heaters. Rated for up to 1/2 psi, suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.

• Size: 1/2 inch
• BTU Capacity: 230000
• Max Inlet Pressure: 1/2 PSI

Product Highlights

The Maxitrol RV48L-1/2 gas regulator offers efficient control for various heating applications. Its rubber seat poppet design ensures durability and reliability.

Product Information

Standard Information

• Type: Liquid propane, rubber seat poppet design
• Series: RV
• Material: Aluminum
• End Style: NPT
• Dimensions: 2.8 inches L x 3.4 inches W x 3 inches D

Technical Specifications

• Brand: Maxitrol
• MPN: RV48L-1/2
• Nominal Size: 1/8 x 1/2 inch
• Mounting Type: Horizontal Upright
• Pressure Range: 5 - 12 inch WC
• Maximum Pressure: 1/2 psi
• Temperature Rating: 32 - 225 degrees Fahrenheit
• BTU Capacity (Burner): 230000
• BTU Capacity (Fixed Orifice): 40000
