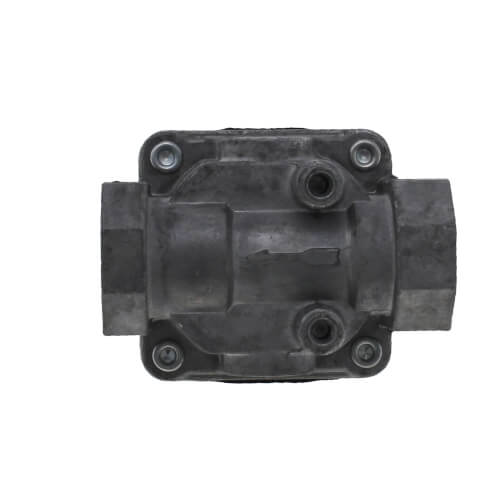

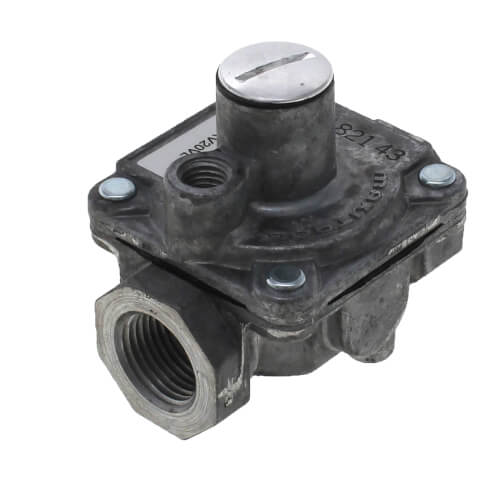

Maxitrol RV20VL-3/8-13.5 Gas Pressure Regulator, 3/8 Inch, Brass Construction

Product Description

Meet the Maxitrol RV20VL-3/8-13.5, a robust gas pressure regulator designed for various industrial applications. Primarily utilized for main burner and pilot load applications, this model ensures efficient control of small to medium flow quantities.

• Features 3/8 inch FNPT inlet and outlet connections.
• Adjustable outlet pressure from 1 to 3.5 psi, suitable for precise control.
• Includes internal relief valve for enhanced safety and prevention of over-pressurization.

Product Highlights

Constructed from high-strength brass, the Maxitrol RV20VL-3/8-13.5 offers exceptional durability and corrosion resistance, making it ideal for gas distribution systems and pneumatic controls. Its compact design allows for installation in any plane or angle without restrictions.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: RV20VL-3/8-13.5

Technical Specifications

• Material: Brass
• Connections: 3/8 inch FNPT inlet and outlet
• Pressure Range: 1 to 3.5 psi
• Weight: 0.22 lbs
• Dimensions: Length: 2.5 inches, Width: 2.05 inches, Height: 1.75 inches
