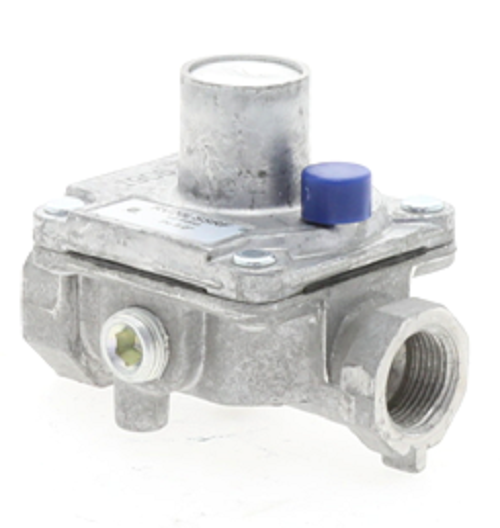

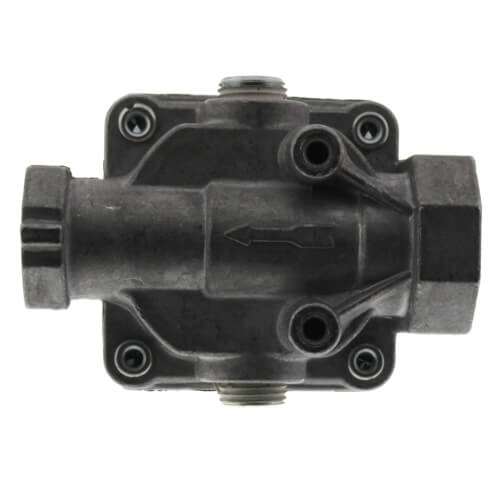

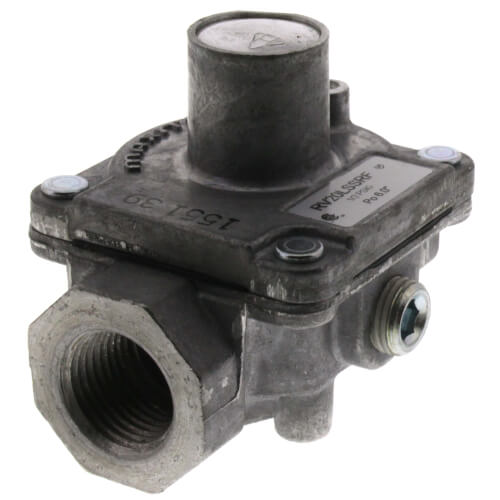

Maxitrol RV20LSSRF-3L6-0003 Natural Gas Regulator Fixed Set - 3/8 Inch FNPT

Product Description

Maxitrol RV20LSSRF-3L6-0003 serves as a robust natural gas regulator designed for precision control in both main burner and pilot load applications. Ideal for professional installation and designed to handle precise tiny flows essential for optimal operation.

• Factory-set fixed adjustment promoting consistent performance.
• Incorporates a vent limiting orifice for enhanced safety and efficiency.
• High strength aluminum die-cast housing ensures durability.

Product Highlights

Featuring multi-poise mounting capabilities, this regulator can be installed in any plane or angle without restriction, suitable for use with natural gas or mixed-air gas. Equipped with a side tap on the right side for easy connection.

Product Information

Standard Information

• Brand: Maxitrol
• Model: RV20LSSRF-3L6-0003
• Type: Natural Gas Regulator
• Connection Type: FNPT
• Country of Origin: United States

Technical Specifications

• Max Inlet Pressure: 1/2 PSI
• BTU Capacity (Burner): 65000
• BTU Capacity (Fixed Orifice): 30000
• BTU Capacity (Burner and Pilot): 50000
• Setting: 6 inches fixed
• Size: 3/8 inches NPT
