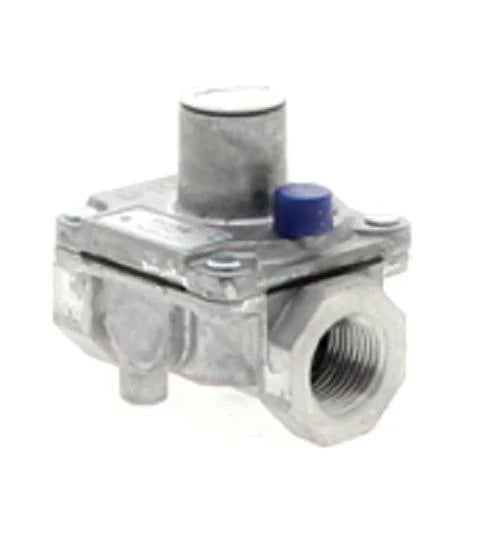

Maxitrol RV20LE-3/8 Gas Regulator 3/8 Inch Size 65,000 BTU

Product Description

Explore the reliability of the Maxitrol RV20LE-3/8, a 3/8 inch gas regulator designed to handle spring pressures between 3 and 5 inches. This model is optimized for applications requiring precise control of gas flow, ideal for both main burner and pilot operations.

• Engineered with robust aluminum die castings for durability.
• Flexible installation options, mountable in any plane or angle.
• Suitable for use with natural, manufactured, and mixed gases, as well as LP and LP gas-air mixtures.

Product Highlights

The RV20LE-3/8 offers a maximum inlet pressure of 1/2 PSI and provides a BTU capacity of up to 65,000 for burners, making it a versatile solution for various gas regulation needs.

Product Information

Technical Specifications

• Brand: Maxitrol
• MPN: RV20LE-3/8
• Spring Range: 3 to 5 inches
• Maximum Inlet Pressure: 1/2 PSI
• BTU Capacity: 65,000
• Width: 9.01 inches
• Height: 8.01 inches
• Length: 8.01 inches
• Weight: 2.0 pounds
