Maxitrol R400S-1/2 Gas Appliance Regulator 300000 BTU, Non-Adjustable Lever Acting

Product Description

This Maxitrol R400S-1/2 Gas Pressure Regulator, meticulously crafted by Maxitrol, efficiently manages the flow and pressure of gas in various applications. Ideal for both main burner and pilot load applications, this model is essential for maintaining stable gas delivery in appliances.

• Highly compatible for use with natural gas, manufactured gas, and LP gas-air mixtures.
• Features a robust aluminum body with threaded end connections ensuring durable and leak-free performance.
• Supports gas flow capacities up to 77 cubic feet per minute with a specific gravity of 0.64.

Product Highlights

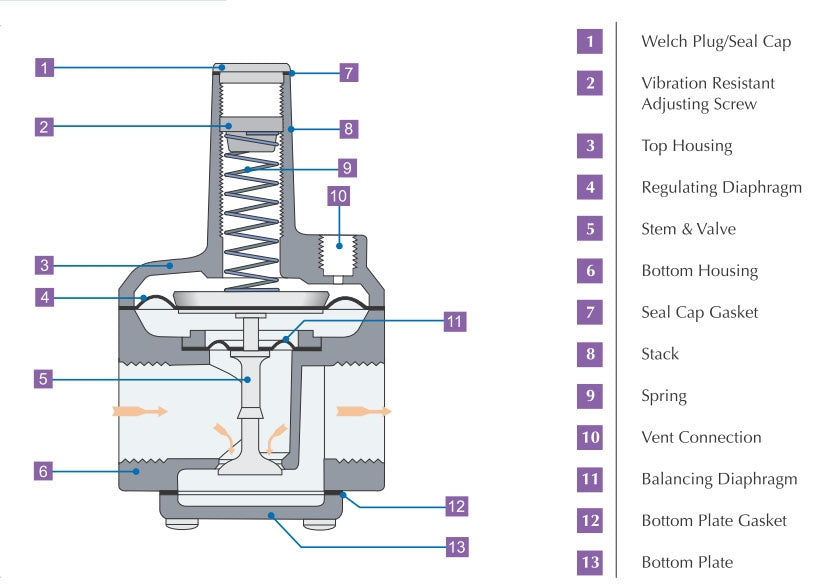

Equipped with a double diaphragm and balance valve design, the Maxitrol R400S-1/2 ensures consistent outlet pressure control despite fluctuating inlet pressures. The compact size does not compromise on its exceptional capacity, making it suitable for residential and industrial settings.

Product Information

Standard Information

• Brand: Maxitrol
• Model: R400S-1/2
• Type: Gas Appliance Regulator

Technical Specifications

• Pressure Range: 0.5 PSI
• Temperature Range: -40 to 205 degrees Fahrenheit
• Connection Size:: 1/2 inch NPT x 1/2 inch NPT
• Capacity: 77 CFM at 0.64 specific gravity
• Material: Aluminum
• Compliance: UL, CSA, ANSI Z21.80/CSA 6.3
