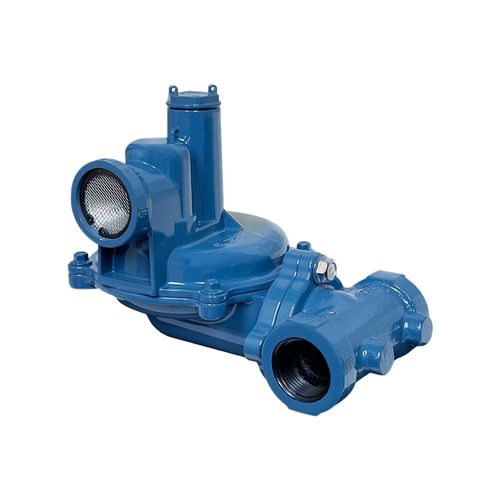

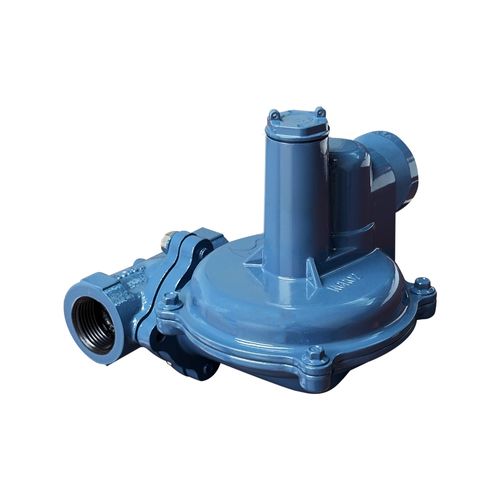

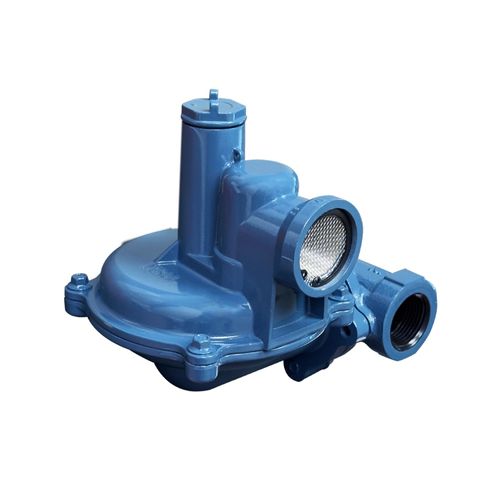

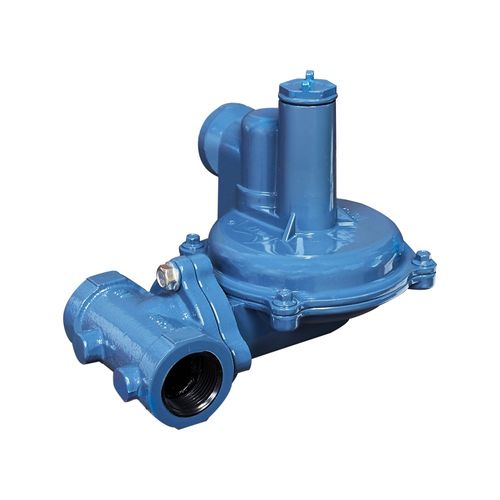

Maxitrol NGR02-BDA Gas Regulator 3/4 inches 6.5 inches-16 inches WC

Product Description

The MAXITROL NGR02-BDA is a spring-loaded gas regulator with internal relief, providing consistent and controlled pressure for residential, industrial, and commercial applications. It meets ANSI Z21.80 standards for Class I, Class II, Vent Limiting, and OPD applications. Designed for use with non-corrosive dry gases, this regulator ensures reliable performance in various settings.

• ANSI Z21.80 certified
• Vent Limiter Option
• Internal Relief - OPD

Product Highlights

Ensures consistent pressure in residential, industrial, and commercial applications. Certified to ANSI Z21.80 and features internal relief.

Product Information

Standard Information

• Brand: MAXITROL
• Manufacturer Part Number: NGR02-BDA

Technical Specifications

• Gas types: Natural gas, LPG, other non corrosive dry gases
• Maximum inlet pressure: 10 to 125 psig per orifice
• Maximum emergency inlet pressure: 175 psig
• Operating temperature: -40F to +140F
• Size: 3/4"
• Water Column ("WC): 6.5"-16"
