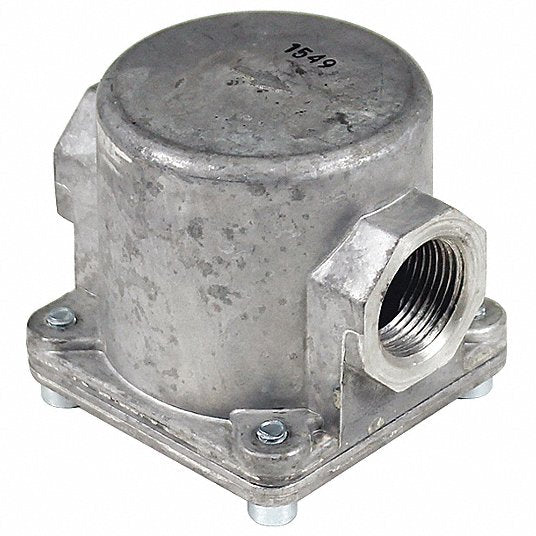

Maxitrol GF60-1 1 GAS FILTER -88

Maxitrol filters can be used on a variety of applications such as natural gas, air, manufactured gas, LP, gas-air mixtures, and sewer gas. Changes to the NFPA (National Fire Protection Association) 86 Standard require a gas filter or strainer be installed in the fuel gas supply line, on new oven and furnace installations. The filters are tested according to DIN 3386 and have DIN/DVGW approval. European approval according to Gas Appliance Directive 90/396/EWG. Unique filter matting effectively separates dust. The matting has an extremely high capacity for accumulated dust due to its wide filtering surface and depth effect. The material will not allow particulate infiltration over 0.05mm (50 microns). The inserts are quick and easy to clean or replace. The filter housing's compact size allows for easy original equipment installation or retrofitting.

Specifications:

Housing's are made of durable cast aluminum
Filter matting consists of polypropylene impregnated fleece
BSP thread (parallel or taper) dimensions according to ISO 7-1
Maximum operating inlet pressure: 15 psi (1 bar)
Ambient temperature limit: 175 F (80 C)
