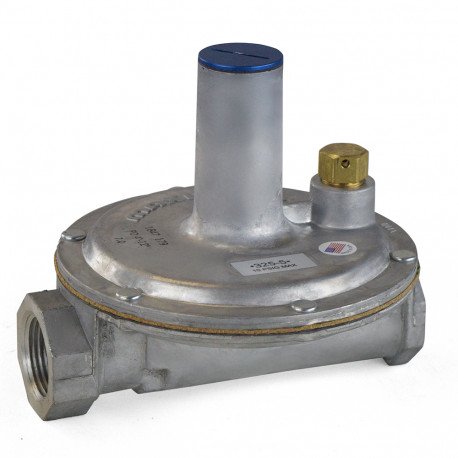

Maxitrol 325-5V 1 1 325CFH/10PSI/4-12/WITH

325-5V series (replaces older 325-5 series), Maxitrol 1 gas appliance regulator with factory-installed 12A39 vent limiter.
NOTE: This product is intended for installation by a licensed gas professional.

Features:

Includes 12A39 (3/8 NPT) Certified Vent Limiter
Lever-acting design
Positive dead-end lockup
Precise control from full flow down to pilot flow
Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
CSA certified and labeled (both regulator and vent limiting device)
Complies with ANSI Z21.18 (standard for appliance regulators)
Made in the USA

Specifications:

Inlet/Outlet Connection: 1 NPT
Rated Inlet Pressure (CSA Certified): 5 psi (NG), 2 psi (LP)
Outlet Pressure Range: 7 - 11 w.c. (White Spring)
Factory-Set Pressure (w.c.): 7
Emergency Exposure Limits: 65 psi (Inlet Side Only)
Capacity (Combined): 325,000 BTU/hr
Max Individual Load (Single Appliance): 325,000 BTU/hr
Operating Temperature Range (Ambient): -40 - 205F
Vent Connection: 3/8 NPT
Housing material: Aluminum
Dimensions (L x H): 5.9 x 5.3
