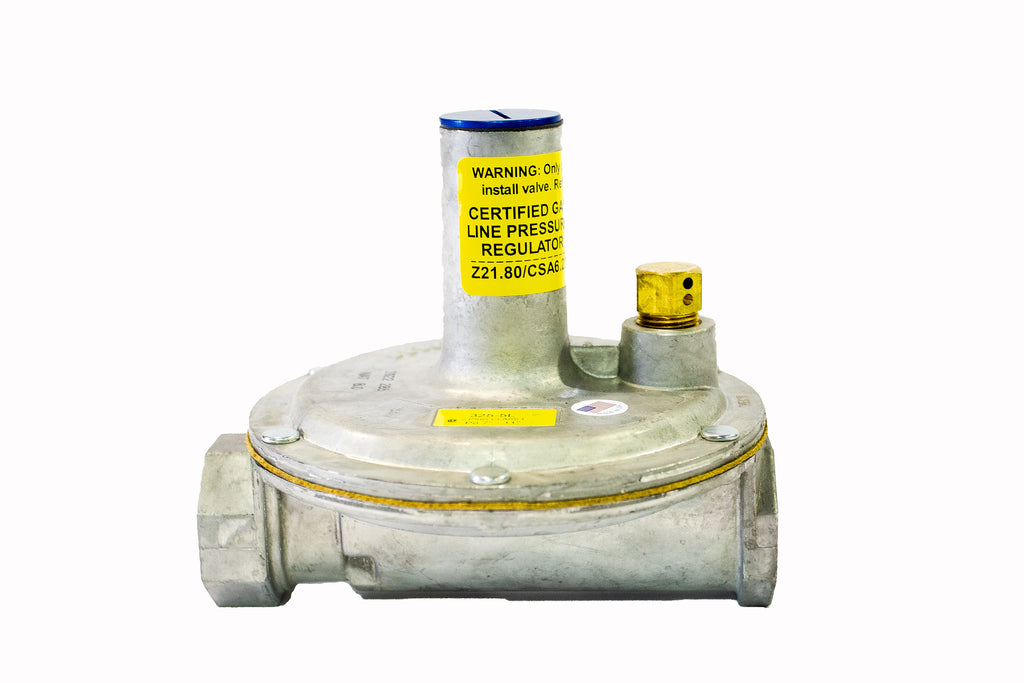

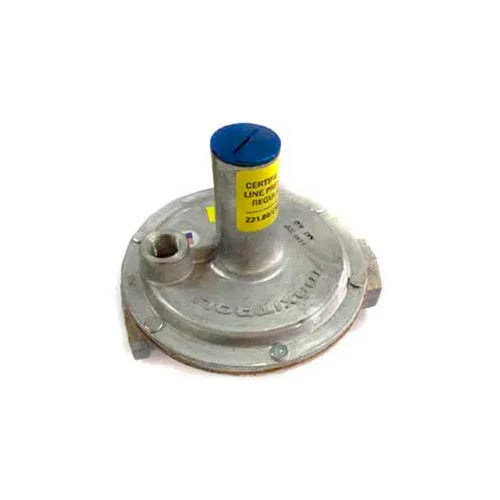

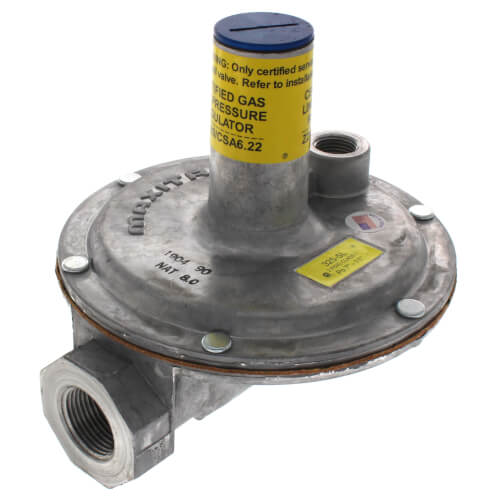

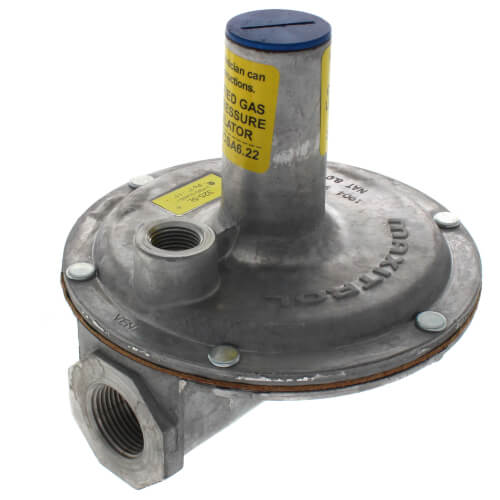

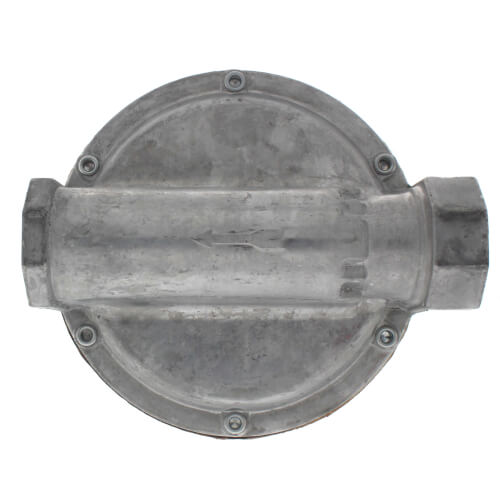

Maxitrol 325-5LV-3/4-LP Gas Line Pressure Regulator with Vent Limiter

Product Description

The Maxitrol 325-5LV-3/4-LP is a gas line pressure regulator designed for both residential and commercial use. This regulator is equipped with a three-quarter inch NPT inlet and outlet connection. It ensures precise control over gas flow, from full flow to pilot flow, making it suitable for a variety of gas types, including natural gas and propane.

• Includes a factory-installed vent limiter for added safety.
• Designed for effective dead-end lock-up.
• Meets various industry standards for quality and safety.

Product Highlights

This product offers reliable pressure regulation and is built to operate in a wide temperature range, perfect for diverse settings.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-5LV-3/4-LP

Technical Specifications

• Inlet/Outlet Connection: 3/4 NPT
• Rated Inlet Pressure: 2 psi
• Max Inlet Pressure: 2 psi
• Outlet Pressure Range: 7 - 11 w.c.
• Factory-Set Pressure: 8 w.c.
• Operating Temperature Range: -40 - 205°F
• Vent Connection: 3/8 NPT
• Capacity: 600,000 BTU/hr
• Max Individual Load: 425,000 BTU/hr
• Housing Material: Aluminum
• Dimensions (L x H): 5.9 x 5.3 inches
• Width: 5-7/8 inches
• Height: 5-1/4 inches
• Weight: 2 lbs
• Spring Range: 7 - 11
• Pipe Size: 3/4 inches
