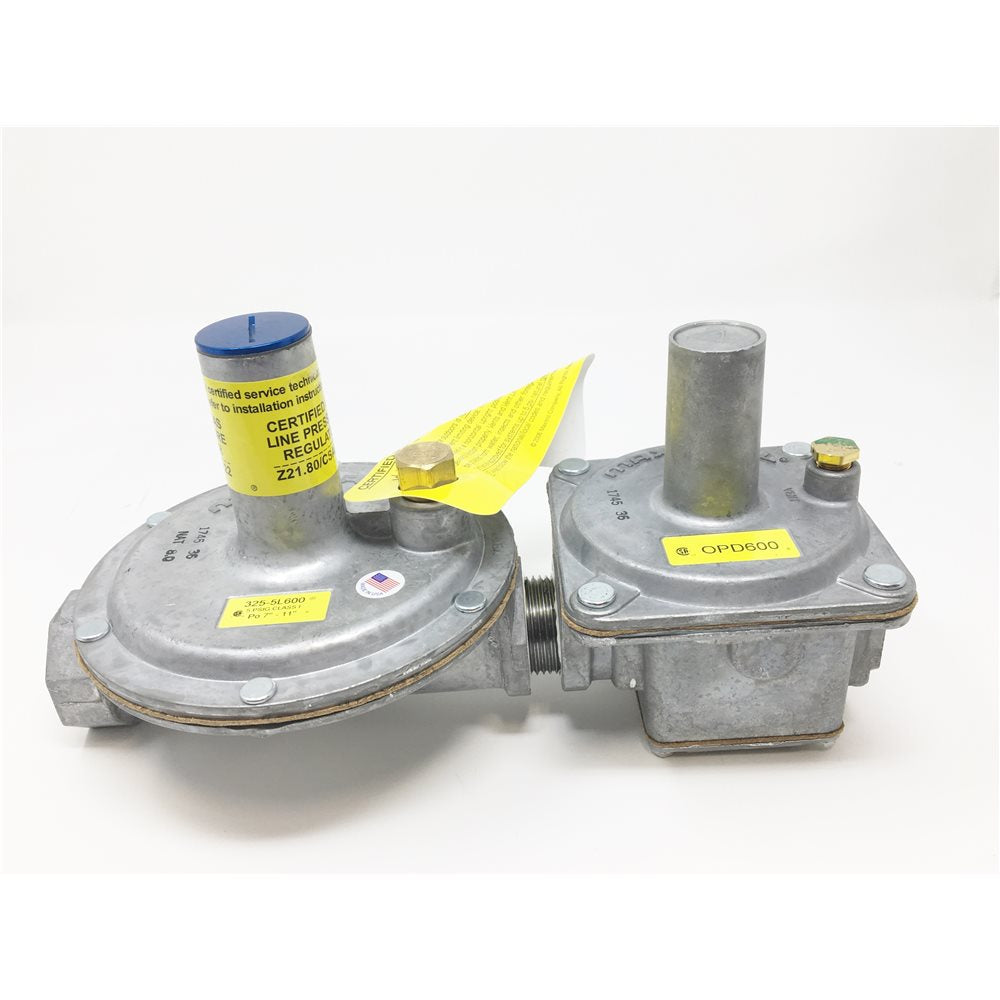

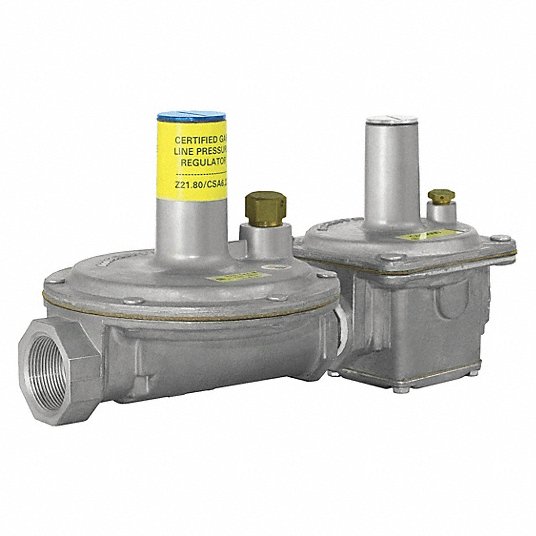

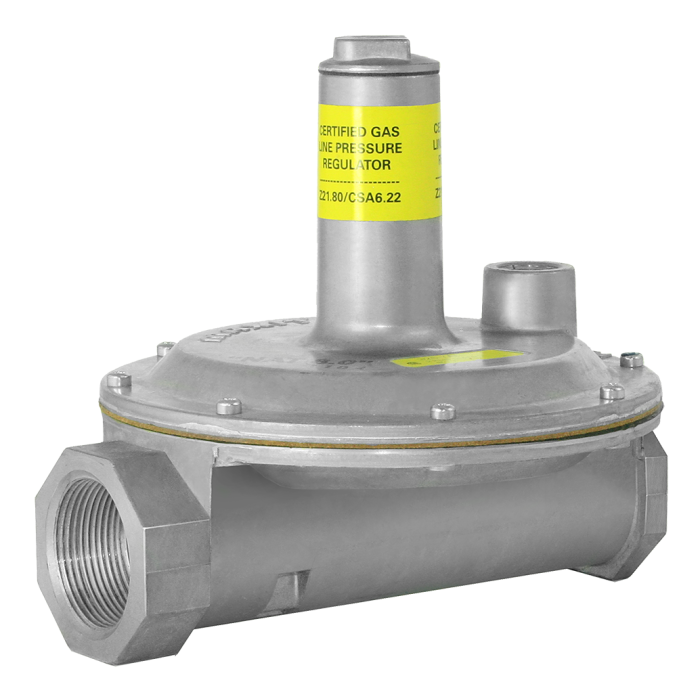

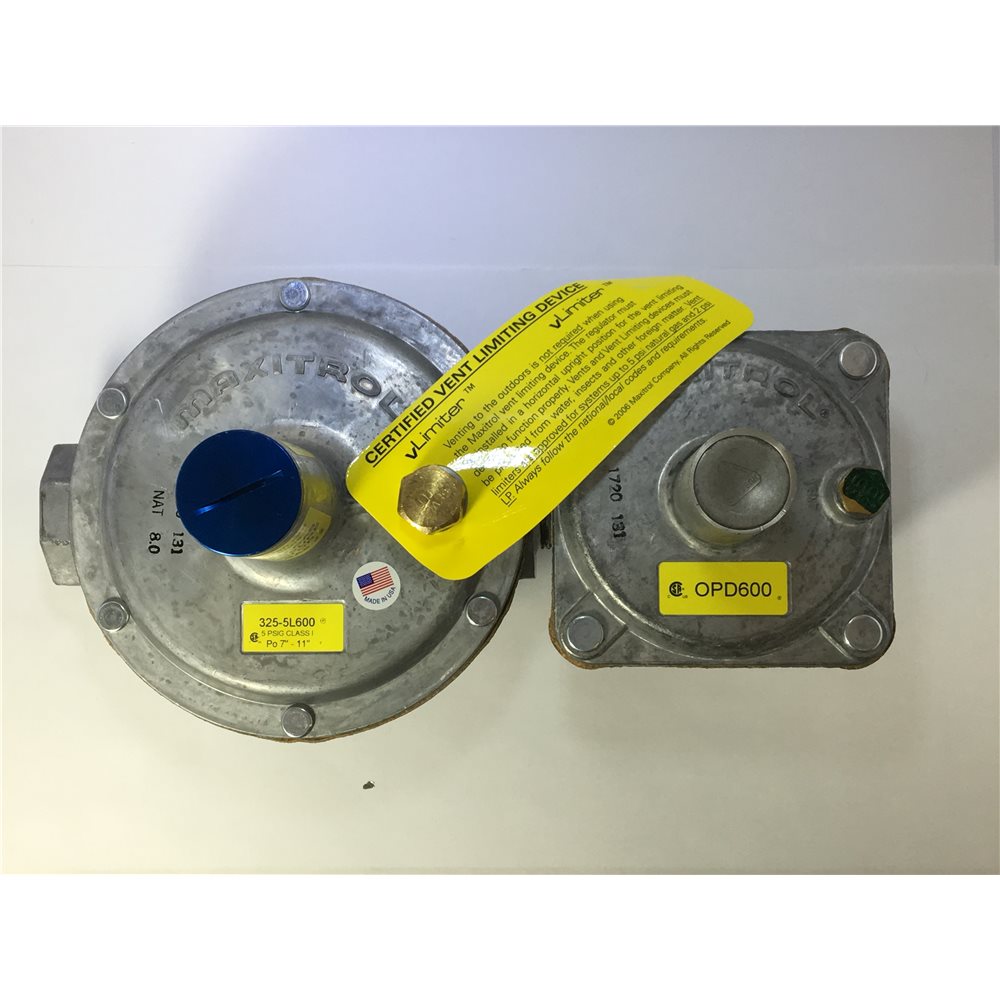

Maxitrol 325-5L600-88-NG01 Gas Pressure Regulator

Product Description

The Maxitrol 325-5L600-88-NG01 is a gas pressure regulator designed for natural gas applications. This model is part of the 325 series, suitable for residential, commercial, and industrial uses where specific inlet pressures are available. It operates efficiently as a single-stage regulator, lowering pounds pressure to standard burner pressure, and can also be used as a line regulator for equipment that already has an appliance regulator.

• CSA certified for up to five psi inlet pressure.
• Equipped with an over-pressure protection device (OPD).
• Self-aligning valve with lever action for dead-end regulator lockup.

Product Highlights

Reliable gas pressure regulation for various applications such as heating and cooking.

Product Information

Standard Information

• Gas Type: Natural Gas, Liquid Propane
• Inlet Pressure: 5 psi

Technical Specifications

• Outlet Pressure Range: 7-11 WC
• Ambient Temperature Range: -40 degrees to 205 degrees F
• Connection Type: 1 NPT
• BTUH Capacity: 465,000
• Pipe Size: 1
• Mounting Position: Upright
