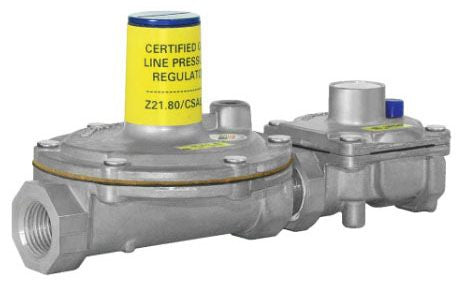

Maxitrol 325-5L48-3/4 3/4 NPT x NPT 5 PSI Aluminum Lockup Lever Acting Line Pressure Regulator

Product Description

The Maxitrol 325-5L48-3/4 is a line pressure regulator designed for natural gas and liquefied petroleum gas applications. This regulator features a nominal size of three-fourths inches by three-fourths inches with a maximum inlet pressure of five PSI. Its aluminum construction ensures resistance to corrosion and durability for long-term use.

• Standard factory setting of eleven inches WC (LP) and eight inches WC (NG)
• Temperature rating ranges from negative forty degrees to two hundred five degrees Fahrenheit
• Maximum individual load capacity of 320,000 BTU/hour

Product Highlights

This device is suitable for outdoor applications, including burners or pilots. The linkage assembly and outlet pressure dial (OPD) allow for easy adjustment and precise operation.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-5L48-3/4

Technical Specifications

• Body Material: Aluminum
• End Connection: Threaded x Threaded
• Pressure Rating: 5 PSI, 7 inches WC
• Inclusions: Linkage Assembly, OPD
• Vent Connection Size: 3/8 inches
• Swing Radius: 4.4 inches
• Overall Dimension: 5.3 inches x 10 inches x 5.4 inches
• Gas Type: Natural Gas, LPG, Manufactured Gases
