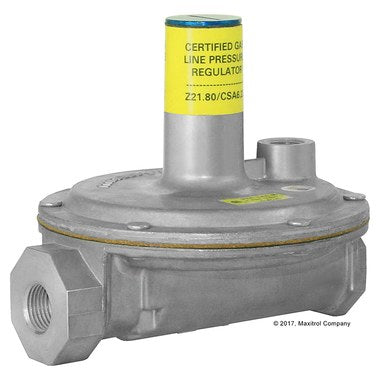

Maxitrol 325-5L-44-NG02 Regulator 1/2 Inch 8 Inches of Water Column Set 7-11 Inch Spring

Product Description

The Maxitrol 325-5L-44-NG02 Regulator is designed for precise pressure control in gas applications. Made from sturdy aluminum, it can handle temperatures from -40 to 205 degrees Fahrenheit. This regulator features an NPT connection for straightforward installation. The pipe size is 1/2 inch, and it sets the outlet pressure at 8 inches of water column. The pressure is adjustable with a spring range of 7 to 11 inches. It operates effectively with an inlet pressure of 2 pounds per square inch. The lightweight design, weighing only 2 pounds, allows easy handling and installation.

• Durable aluminum construction
• Temperature range: -40 to 205 degrees Fahrenheit
• Adjustable outlet pressure from 8 inches water column

Product Highlights

Reliable performance for low-pressure gas systems.

Product Information

Standard Information

• Brand: Maxitrol
• Part Number: 325-5L-44-NG02

Technical Specifications

• Item Number: 325-5L-44-NG02
• Material: Aluminum
• Pipe Size: 1/2 inch
• End Connection: NPT
• Inlet Pressure: 2 PSI
• Outlet Pressure: 8 inches water column set
• Spring Size: 7-11 inch spring
• Temperature: -40 to 205 degrees Fahrenheit
