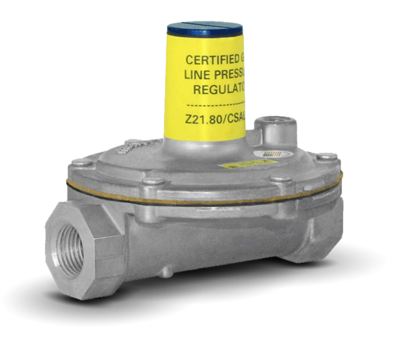

MAXITROL 325-5AL Aluminum Lever Acting Gas Pressure Regulator with Vent Limiting Device

Product Description

The MAXITROL 325-5AL is a reliable gas pressure regulator designed for both residential and commercial use. This aluminum lever acting regulator provides essential pressure regulation for LP gas systems. It features a vent limiting device and is designed for half inch NPT connections with a capacity of up to 300,000 BTU.

• High performance for residential and commercial applications
• Meets utility specifications for safe operation
• Compatible with 2 to 5 PSI inlet and 4 to 10 inches WC outlet

Product Highlights

This regulator is compact and can function as a single-stage regulator, effectively reducing pounds pressure for optimal burner function.

Product Information

Standard Information

• Brand: MAXITROL
• MPN: 325-5AL

Technical Specifications

• Type: Lever Acting Gas Pressure Regulator
• Connection Type: 1/2 inch NPT
• Capacity: 300,000 BTU
• Inlet Pressure: 2 to 5 PSI
• Outlet Pressure: 4 to 10 inches WC
• Certification: CSA certified
• Application: Residential, commercial, and industrial use
• Material: Aluminum
