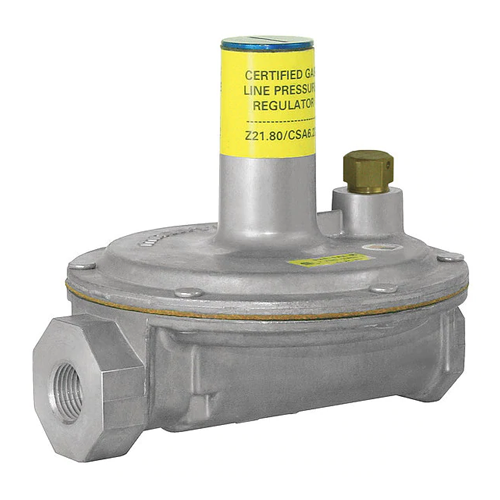

Maxitrol 325-5A-3/4-12A39 Gas Pressure Regulator 3/4 in

Product Description

The Maxitrol 325-5A-3/4-12A39 is a reliable gas pressure regulator suitable for various applications including residential, commercial, and industrial. This regulator features a high leverage valve linkage assembly, providing effective control over gas flow from full to pilot flow. The unit is designed with a 3/4 inch NPT connection, supporting a maximum output of 325,000 BTU per hour.

• Multi-positional mounting capability
• Emergency exposure limits of up to 65 psi
• Handles maximum individual loads of 325000 BTU/hr

Product Highlights

This product is essential for maintaining safe and efficient gas pressure in various systems.

Product Information

Standard Information

• Body Material: Aluminum
• Connection Type: NPT

Technical Specifications

• Nominal Size: 3/4 in
• Pressure Rating: 10 psi Maxitrol Tested, 2 psi LP, 5 psi Natural
• Temperature Rating: -40 to 205 degrees F
• Capacity (BTU): 325000
• Max Inlet Pressure: 5 PSI (NAT), 2 PSI (LP)
