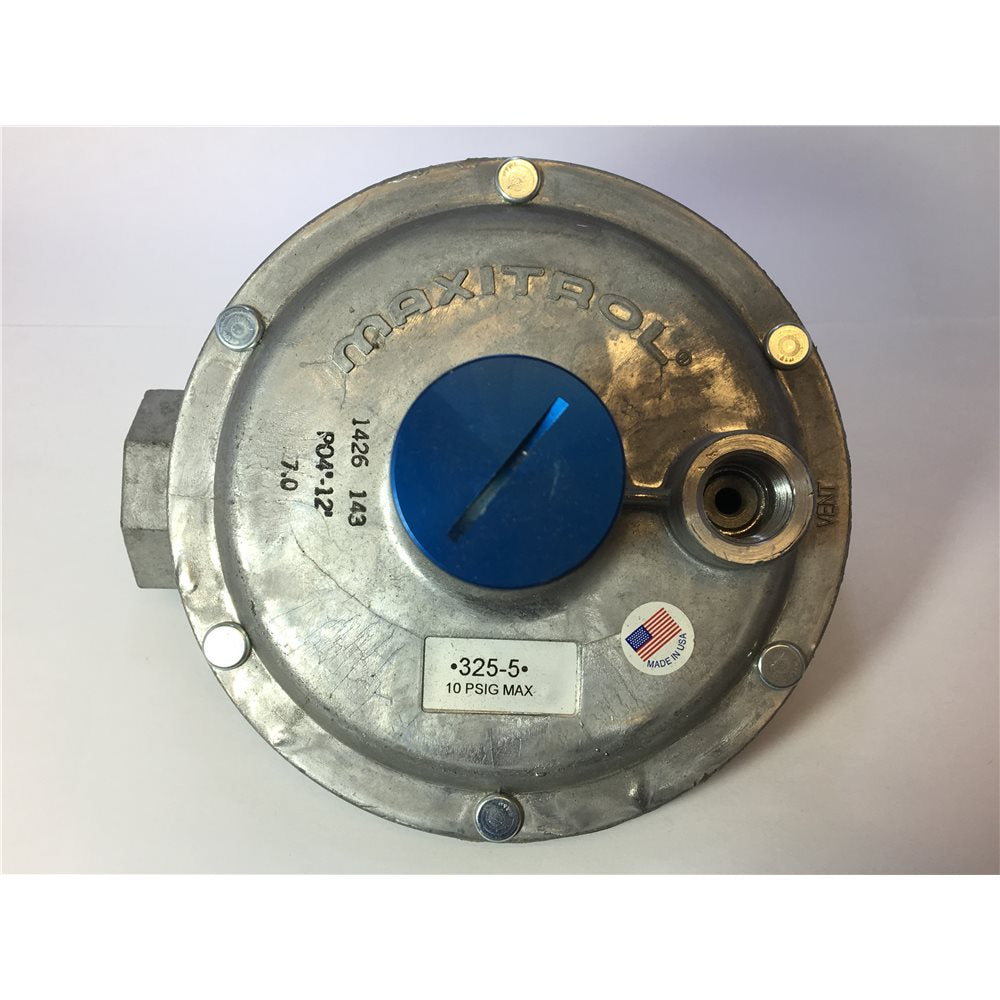

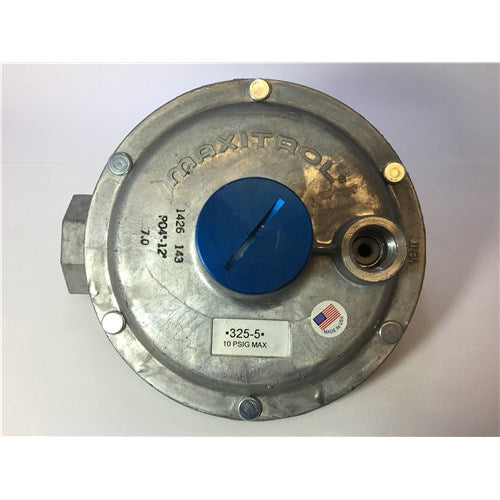

Maxitrol 325-5.510 Non-Certified Gas Regulator 1/2in 10#

Product Description

The Maxitrol 325-5.510 is a 1/2 inch non-certified gas regulator. This device is optimal for regulating gas pressure in various applications. It is set at seven inches of WC and uses a four to twelve violet spring. The regulator does not include a vent limiter. Maximum inlet pressure when using the compatible twelve A39 vent limiter is five PSI for natural gas and two PSI for propane.

• 1/2 inch connection
• Set pressure: seven inches of WC
• Compatible with twelve A39 vent limiter

Product Highlights

This gas regulator is essential for managing gas flow efficiently and safely in HVAC systems.

Product Information

Standard Information

• Brand: Maxitrol
• Country of Origin: United States

Technical Specifications

• MPN: 325-5.510
• Pressure Setting: Seven inches of WC
• Max Inlet Pressure (Natural Gas): Five PSI
• Max Inlet Pressure (Propane): Two PSI
• Violet Spring Range: Four to twelve
• Connection Size: 1/2 inch
• Alternate Part Numbers: 325-5-44-0044, 325-5A .5 10#
