Product Description

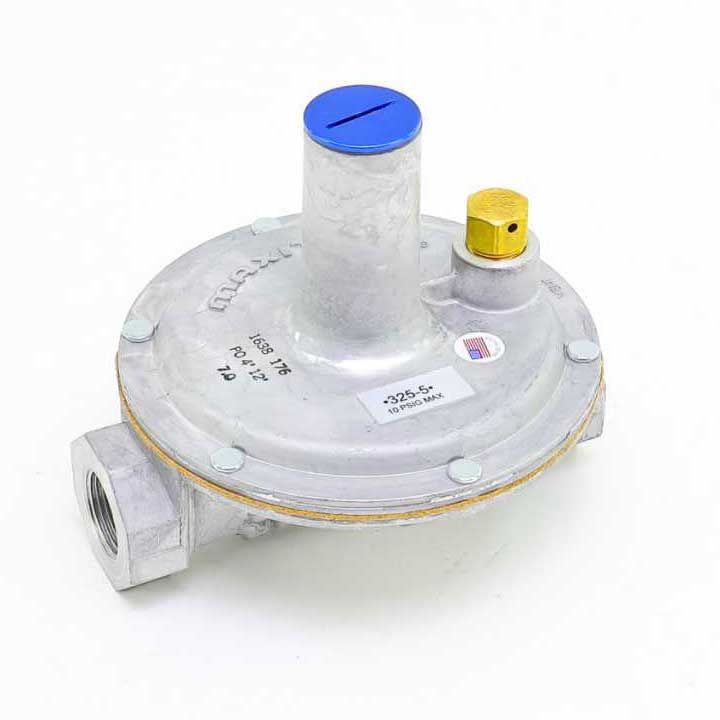

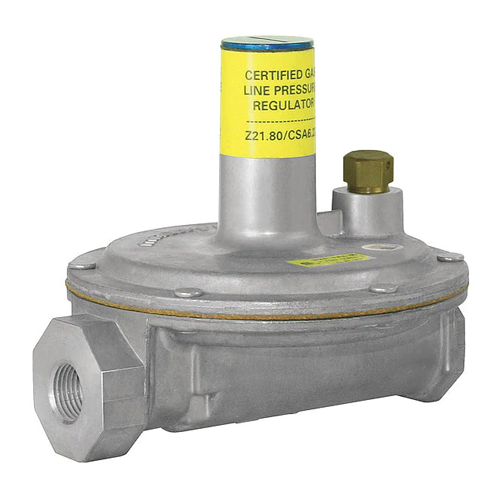

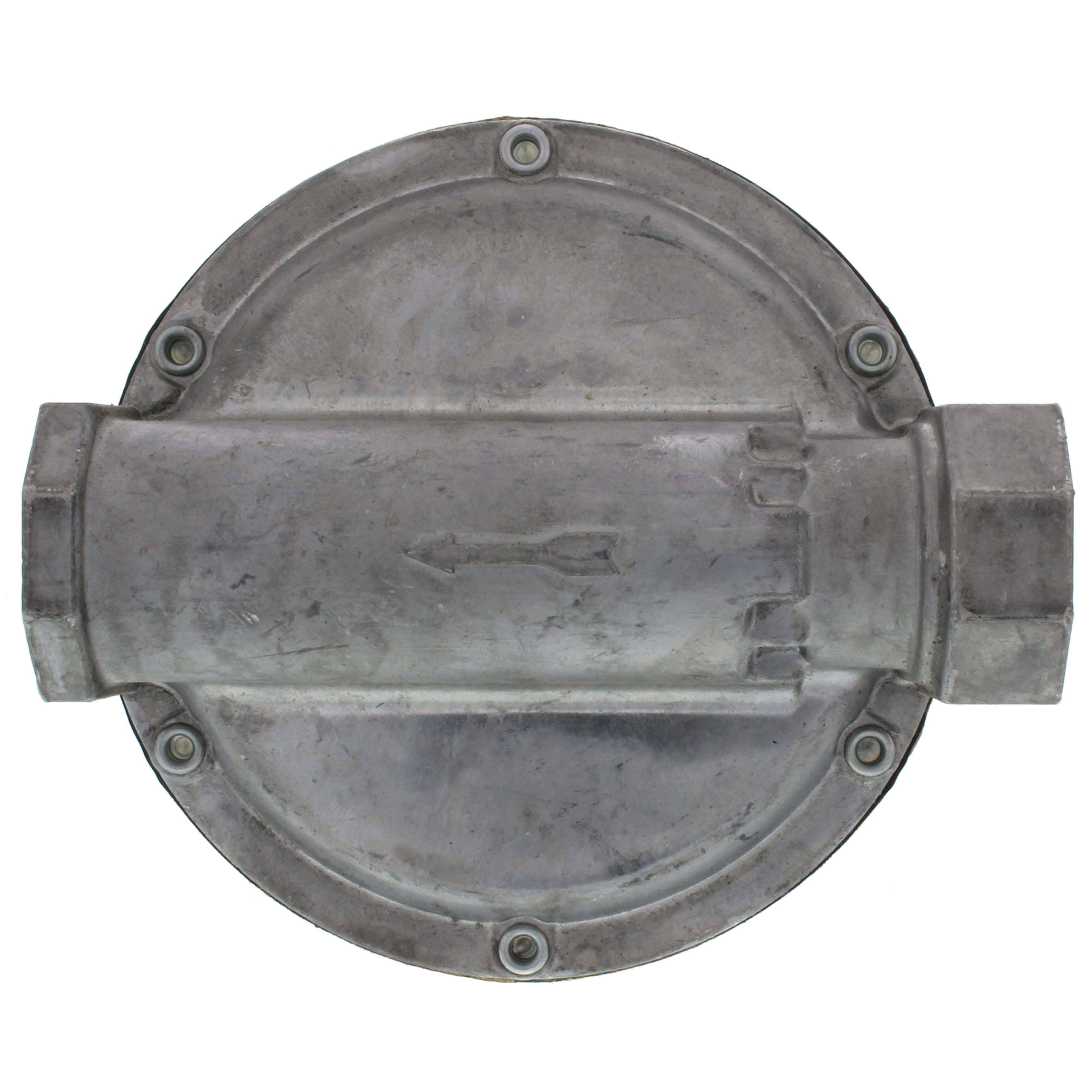

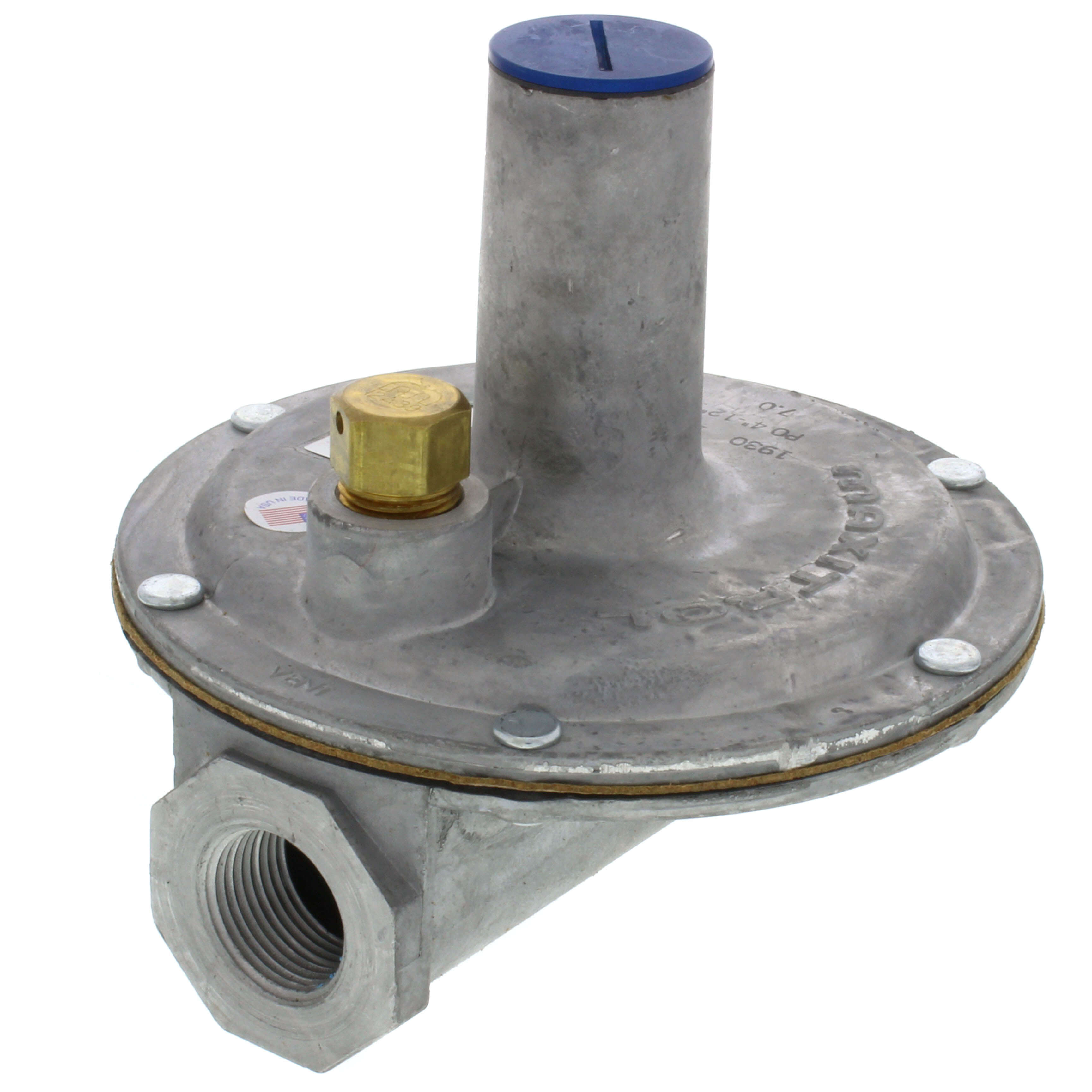

The MAXITROL 325-5-3/4-12A39 is a 3/4" 5#MaxIn W/VentLimit4-12". It features a lever acting gas regulator with positive dead-end lock-up and a vent limiter. This regulator has a 5 psi max inlet pressure for natural gas and 2 psi max inlet pressure for LP with a 4-12" WC outlet pressure and 325,000 BTU/hr max capacity.
- Lever acting gas regulator
- Positive dead-end lock-up
- Vent limiter
Product Highlights
This gas regulator is designed for residential, commercial, and industrial applications. It provides precise control from full flow down to pilot flow and is suitable for various gases.
Product Information
Standard Information
-
Brand: MAXITROL
-
Manufacturer Part Number: 325-5-3/4-12A39
-
Country of Origin: United States
Technical Specifications
-
MPN: 325-5-3/4-12A39
-
Brand: MAXITROL
-
Inlet Pressure (Natural Gas): 5 psi max
-
Inlet Pressure (LP): 2 psi max
-
Outlet Pressure: 4-12" WC
-
Max Capacity: 325,000 BTU/hr
-
NPT Size: 3/4"
-
Length (in): 9.1
-
Width (in): 8.6
-
Height (in): 5.35
-
Size: 3/4"
-
Capacity (BTU): 325000
-
Max Inlet Pressure: 5 PSI (NAT), 2 PSI (LP)
-
Ports: 3/4" NPT
-
Ambient Temperature Range: -40 to 205° F (-40 to 96° C)
-
Design: Lever acting design gas regulator with positive dead-end lock-up
-
UPC: Does not apply
-
Country of Origin: United States
