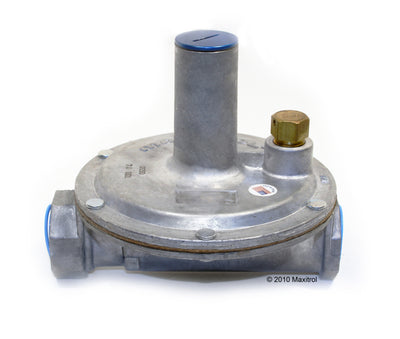

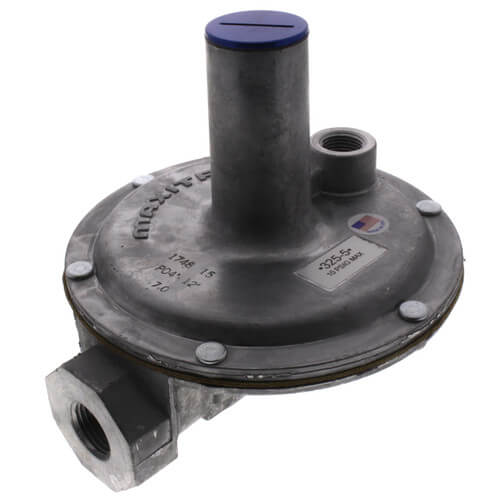

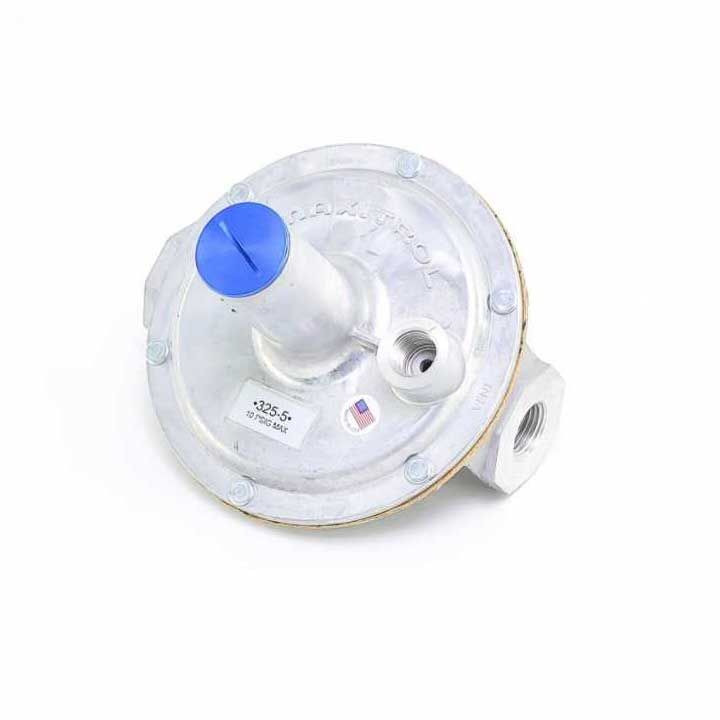

Maxitrol 325-5-1/2 Gas Pressure Regulator 1/2 up to 10 PSI Includes R325E10 and 12A39 Replaces 325-5A-1/2

Product Description

The Maxitrol 325-5-1/2 Gas Pressure Regulator is designed for precise pressure regulation and control in various applications, including residential, commercial, and industrial settings. The regulator is compatible with R325E10 springs and includes a standard 4-12 spring and a 12A39 vent limiter. It delivers a maximum flow rate of 325,000 BTU and is capable of handling gas flow up to 10 PSI.

• 1/2 inch NPT connection
• Compatible with R325E10 and 12A39
• Maximum flow rate of 325,000 BTU

Product Highlights

This gas pressure regulator is suitable for use with natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures. It offers durable construction, ensuring reliable performance in diverse operational conditions. Its lever acting mechanism ensures positive dead-end lock-up and precise regulatory control from full flow down to pilot flow.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-5-1/2

Technical Specifications

• BTU Rating: 325000 BTU/hr
• Connection Size: 1/2 inch
• Connection Type: NPT
• Dimension: 5.9 inches W x 5.3 inches H
• Material: Aluminum
• Model: 325-5A
• Pressure Rating: 10 PSI Maxitrol Tested, 2 PSI LP, 5 PSI Natural
• Temperature Rating: -40 to 205 degrees F
• Type: Lever Acting
• Standards/Certifications: cCSAus, CE certified, ANSI Z21.18/CSA 6.3, CTP, UA.TR.012-13
