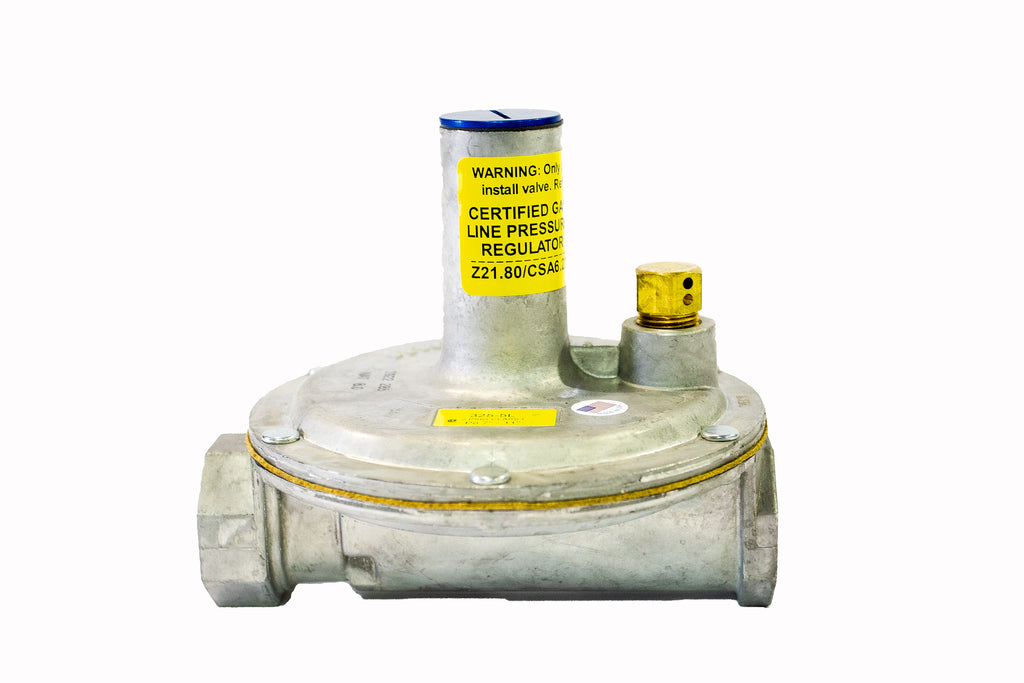

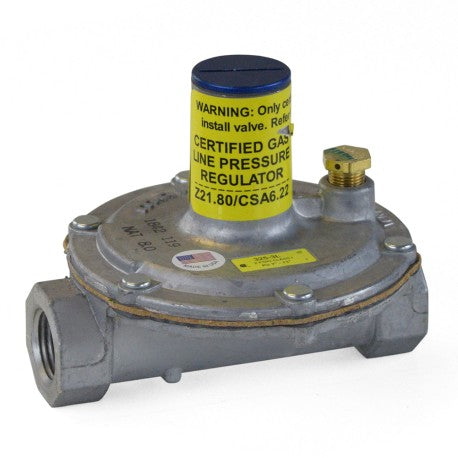

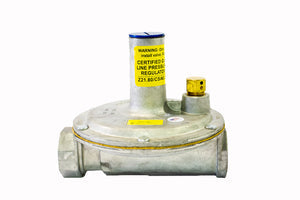

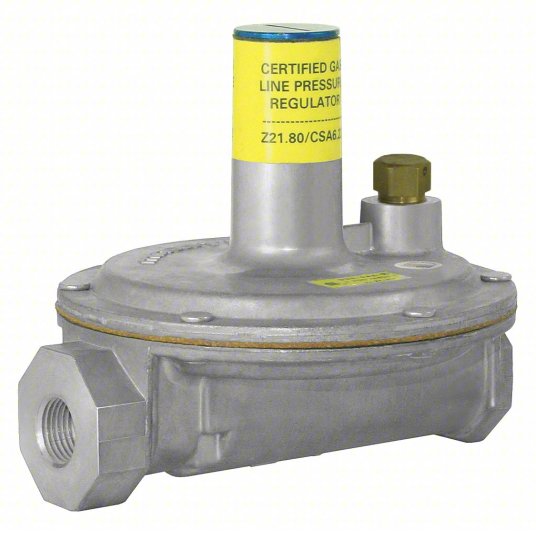

Maxitrol 325-3LV-1/2-LP Gas Line Pressure Regulator

Product Description

The Maxitrol 325-3LV-1/2-LP is a gas line pressure regulator designed for various applications, including residential, commercial, and industrial environments. This regulator includes a factory-installed vent limiter to enhance its operational efficiency.

• Certified vent limiter included
• Lever-acting design ensures precise control
• Positive dead-end lockup feature

Product Highlights

This regulator provides accurate regulation from full flow down to pilot flow, making it suitable for natural gas, manufactured gas, mixed gases, and liquefied petroleum gases.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-3LV-1/2-LP

Technical Specifications

• Inlet/Outlet Connection: 1/2 NPT
• Rated Inlet Pressure: 2 psi (CSA Certified); 5 psi (with OPD); 10 psi (Maxitrol Rated)
• Minimum Inlet Pressure: 1 psi (7 kPa)
• Maximum Inlet Pressure: 2 psi (13.8 kPa)
• Outlet Pressure Range: 7 - 11 w.c.
• Factory-Set Pressure: 8
• Emergency Exposure Limits: 65 psi (Inlet Side Only)
• Capacity: 250,000 BTU/hr
• Maximum Individual Load: 140,000 BTU/hr
• Operating Temperature Range: -40 to 205°F
• Vent Connection: 1/8 NPT
• Housing Material: Aluminum
• Dimensions: 4.2 x 3.5 inches
• Gas Type: Natural gas or LP (Propane) gas
