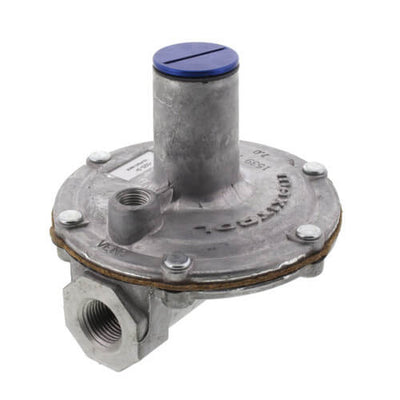

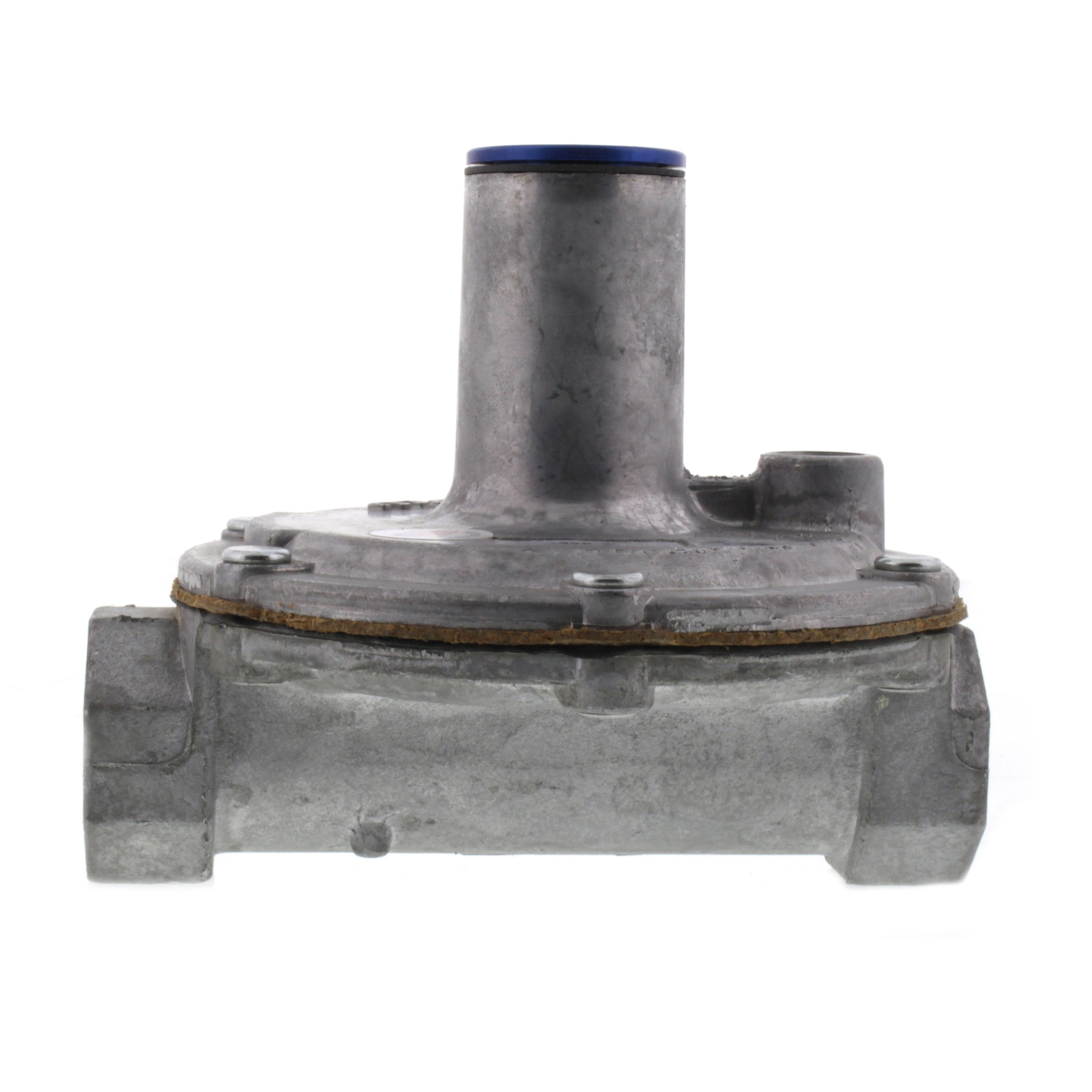

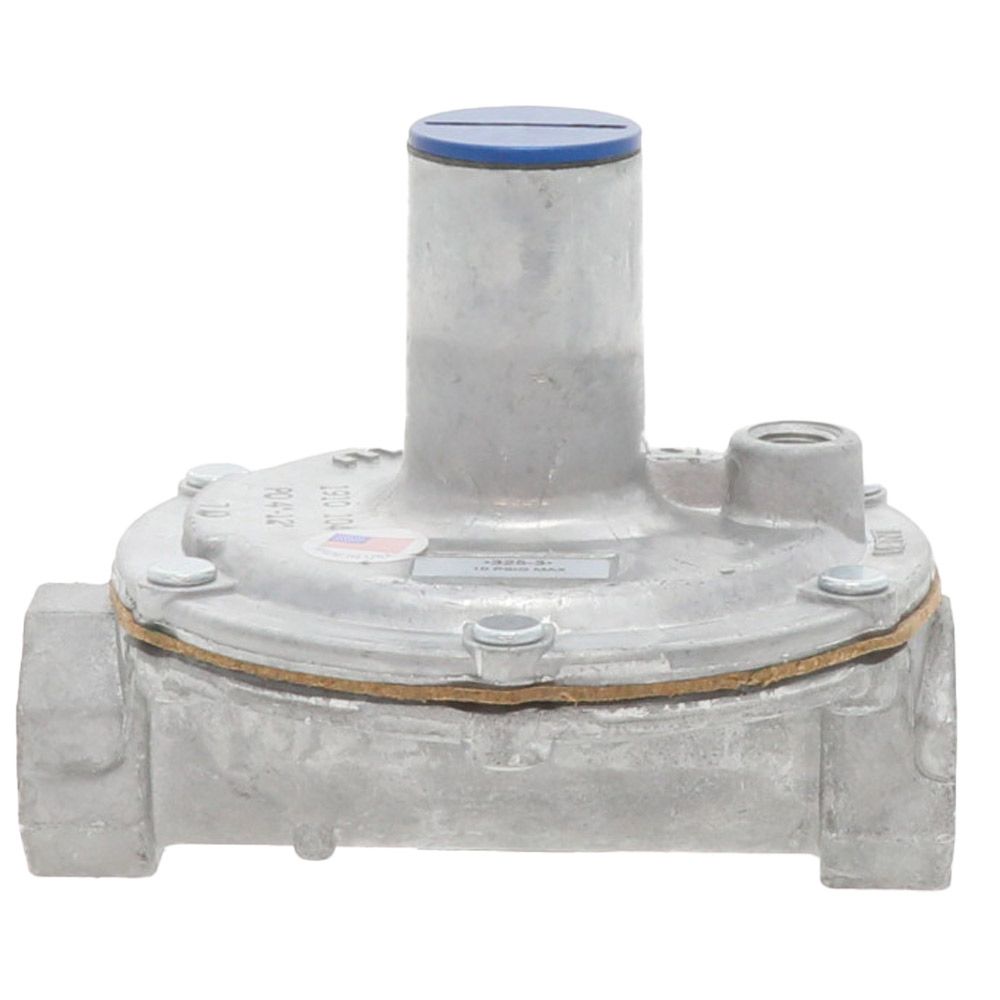

Maxitrol 325-3-3/8 Gas Pressure Regulator 140000 BTU Use With R325C10 Spring 4-12 Spring

Product Description

The Maxitrol 325-3-3/8 Gas Pressure Regulator achieves precision gas pressure control for various applications. The regulator can handle up to 140,000 BTU and is compatible with R325C10 Spring systems. It includes a 4-12 spring for adjustable performance. Suitable for industrial and commercial uses, it provides efficient gas pressure regulation in boilers, furnaces, and other equipment.

• 3/8 NPT inlet and outlet
• Maximum 140,000 BTU flow rate
• Includes 4-12 spring for adjustments

Product Highlights

This gas regulator ensures accurate pressure control and optimal performance in demanding environments.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-3-3/8
• Model: 325

Technical Specifications

• Item Number: 325-3-3/8
• Max Inlet Pressure: 10 PSI
• Output Range: 4 to 12 WC
• Capacity: 140,000 BTU
• Weight: 0.79 pounds
• Dimensions: Length: 4.25 inches, Width: 3.75 inches, Height: 3.5 inches
• Compliance: Meets industry standards for performance and safety
