Product Description

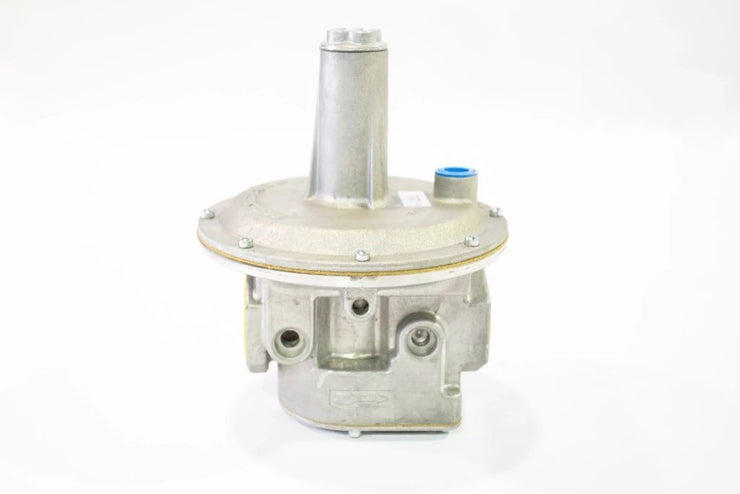

Maxitrol 210E, 2" NPT Gas Pressure Regulator
Maxitrol’s 325-L Series line pressure regulators with OPDs are for use on piping systems up to 5 psi. The regulator reduces pounds pressure to a level within the appliance or equipment’s operating supply range. The line regulator is located upstream of equipment already fitted with an appliance regulator.
Manufacturer Part Number: 210E-2"
MAX210E-2" 2" Gas Pressure Regulator 12,000,000 BTU Use With R9110 Spring Comes With Standard 3-6" Spring Maximum 10 PSI Inlet Pressure
Part Description:
• Gas Pressure Regulator
• Type Lock-Up, Balanced Valve
• Nominal Size 2 Inch
• End Connection Female Threaded x Female Threaded
• End to End Distance 7.6 Inch
• Body Material Aluminum
• Temperature Rating -40 to 200 Deg F
• Pressure Rating 10 PSI (Inlet), 25 PSI (Emergency Exposure Limit)
• Application Gas Fired Boiler, Steam Generator, Industrial Furnace and Oven
• Applicable Standard UL, CSA (Canada and US), CE, ANSI Z21.18
• Gas Type Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
• Vent Pipe Connection 3/4 Inch Threaded
• Swing Radius 8.3 Inch
• Size 9.1 Inch Width x 11.3 Inch Height
• Pressure Drop Rating 14000 BTU/Hour
Features / Benefits
• The Balanced Valve Design Makes it Possible to Maintain Steady Outlet Pressure Control with Widely Varying Inlet Pressure
• The Regulator has an Integrated Dampening Mechanism in the Breather Outlet and the Sensing Tube to Improve Regulating Stability and Reduce Hunting Tendency
• Upright Position Mounting
