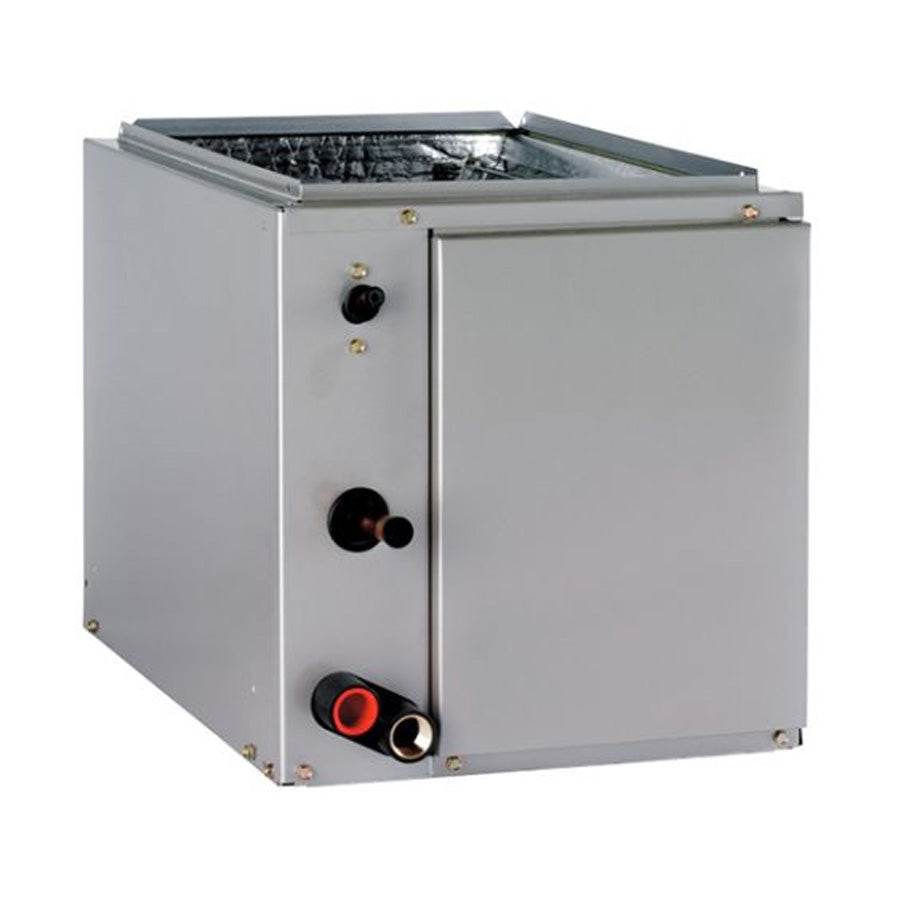

International Comfort Products ENDWX18L14A 14 inch Upflow Downflow Cased Evaporator N-Coil Service Use 1.5 Ton 18000 BTU/hr

Product Description

The INTERNATIONAL COMFORT PRODUCTS ENDWX18L14A is a 1.5 ton, 18,000 BTU/hr vertical N-coil evaporator designed for upflow/downflow furnace applications. This 14-inch cased evaporator coil supports R-410A refrigerant and features a painted case with a factory-installed TXV. It offers reliable cooling performance for HVAC systems and simplifies maintenance with its slide-out coil design, making it suitable for various installation applications.

• Compact design reduces height by 2 to 4 inches for tight installations.
• Condensate pan features two 3/4 inch female threaded brass inserts for leak-free connections.
• Factory-installed Thermostatic Expansion Valves (TXV) ensure refrigerant-specific operation.

Product Highlights

Easy maintenance with slide-out coil access after removing the access door and service panel.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ENDWX18L14A

Technical Specifications

• Cooling Capacity: 18,000 Btu/hr
• Enclosure Type: Cased
• Flow Rate: 450 to 750 cfm
• Nominal Capacity: 1.5 ton
• Refrigerant Type: R-410A
• Series: ENDWX Series
• Type: Type N
• Air Flow Type: Upflow / Downflow
• Hairpin Material: Aluminum
• Liquid Line Size: 3/8 in
• Metering Device: TXV
• Suction Line Size: 5/8 in
• Size: 14 inch
• Coil Type: Cased Vertical N-Coil
• Product Type: Evaporator Coils
