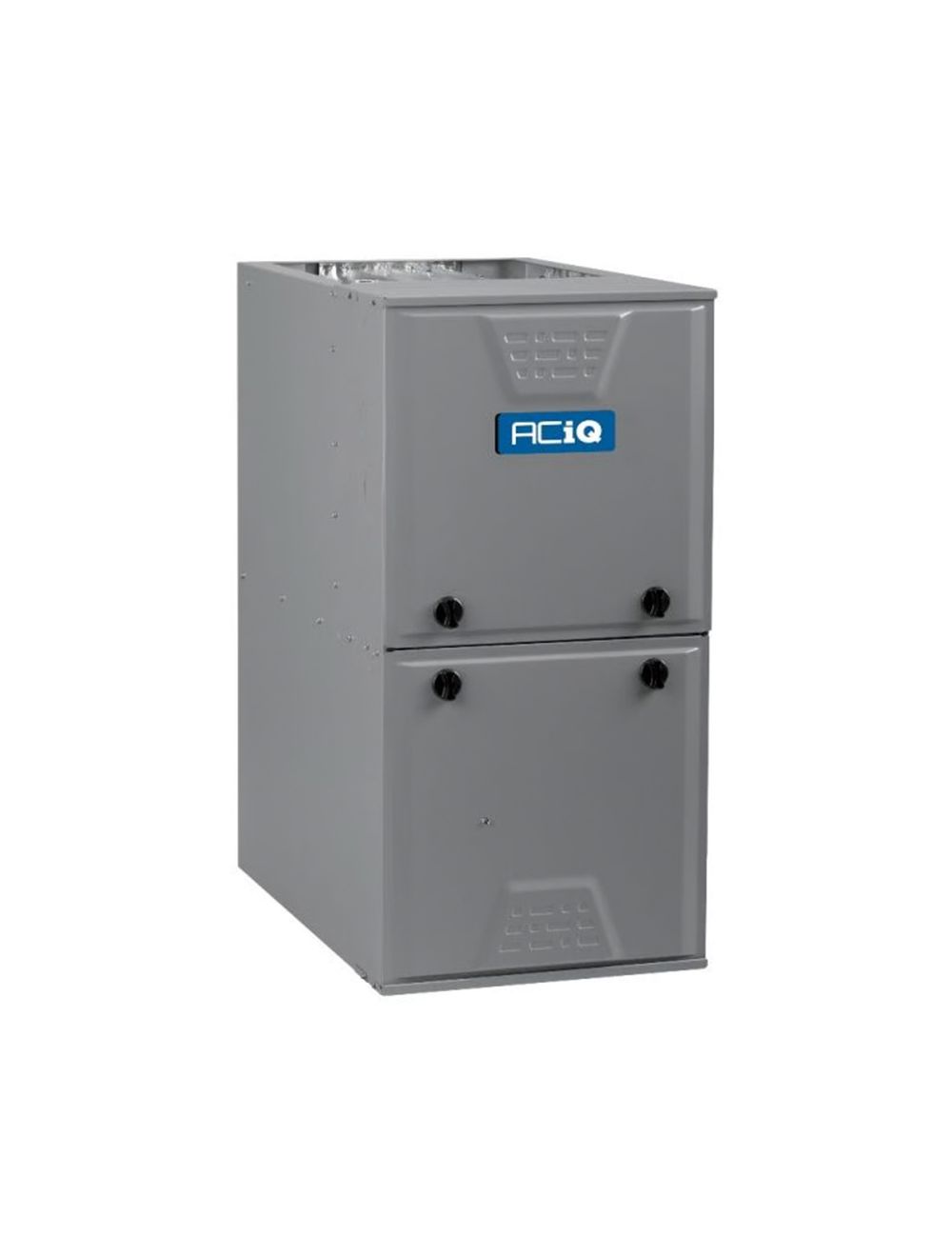

Icp g97cmn0802120b Gas Furnace 80000 Btu/h 97% Afue

Product Description

The ICP g97cmn0802120b is a high-efficiency, multi-positional gas furnace rated at 80,000 BTU/h with a 97% Annual Fuel Utilization Efficiency (AFUE) rating. It uses a modulating gas valve paired with a variable-speed blower motor to maintain consistent supply air temperatures and reduce short-cycling. Nearly all fuel consumed is converted to usable heat, which cuts operating costs compared to standard single-stage units. This furnace is designed for installation by licensed HVAC technicians in residential forced-air heating systems where high-efficiency equipment is required or preferred.

The g97cmn0802120b is suited for residential applications where multi-positional installation flexibility is needed, including upflow, downflow, or horizontal configurations. The modulating burner adjusts heat output in fine increments to match changing load conditions rather than cycling fully on and off, improving both comfort and efficiency. The unit is rated as R454B compliant, making it compatible with current refrigerant transition requirements when paired with a matched cooling system. Typical install scenarios include new construction and retrofit projects requiring high-AFUE equipment to meet local energy codes.

Key Features

• 97% AFUE rating for near-maximum fuel-to-heat conversion efficiency
• Modulating gas valve adjusts output to match heating load, reducing temperature swings
• Variable-speed blower motor lowers electrical consumption and reduces airflow noise
• Multi-positional design supports upflow, downflow, and horizontal installation orientations
• R454B compliant for compatibility with current low-GWP refrigerant system pairings

Compatibility

Designed as an OEM-style replacement or new-installation furnace for residential forced-air gas heating systems requiring a multi-positional, modulating, high-efficiency unit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the International Fuel Gas Code (IFGC), and the manufacturer instructions supplied with the unit. Shut off gas supply and disconnect electrical power before servicing or replacing any furnace components. Venting must be configured for a 97% AFUE condensing appliance, which requires PVC or CPVC flue piping rather than B-vent. Verify drain line routing and trap installation for condensate management before startup.

Technical Specifications

• Heating Capacity: 80,000 BTU/h
• AFUE: 97%
• Blower Type: Variable Speed
• Gas Valve Type: Modulating
• Installation Positions: Multi-Positional
• Refrigerant Compliance: R454B

Standard Information

• Brand: ICP
• Manufacturer Part Number: g97cmn0802120b
