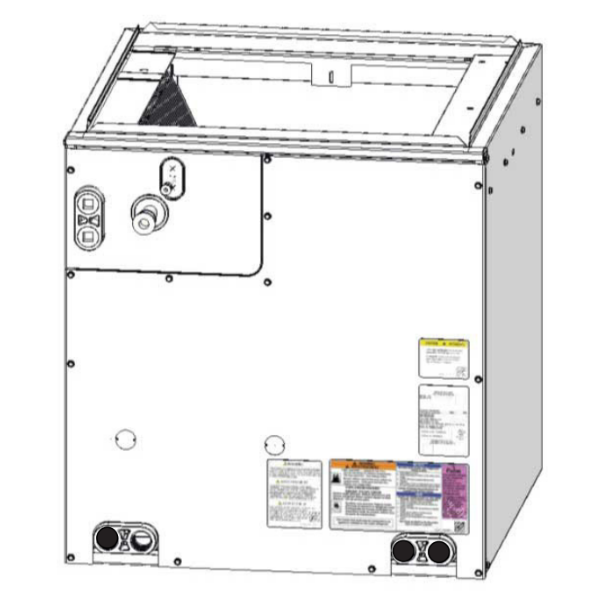

Icp EVMWX48M21A Cased V-coil Evaporator Coil 4 Ton 21 in

Product Description

The ICP EVMWX48M21A is a cased V-coil evaporator coil designed for use with R-410A refrigerant in split-system residential air conditioning and heat pump applications. The V-coil configuration maximizes surface area within a compact cabinet, supporting efficient heat transfer across a range of operating conditions. At a nominal 4-ton capacity and built for a 21-inch air handler or furnace cabinet width, this unit ships as a factory-cased assembly ready for field installation. Licensed HVAC technicians install this coil as part of a matched or replacement split system, connecting it to an outdoor condensing unit and an indoor air handler or gas furnace.

This evaporator coil is suited for residential upflow and downflow split-system installations where R-410A refrigerant is specified. The 21-inch cabinet width makes it compatible with standard residential air handler and furnace platforms in that nominal cabinet size. It is intended for new system builds and service replacements requiring a factory-cased coil assembly with a V-coil arrangement. Technicians working on mid- to larger-capacity residential systems will find this coil appropriate for 4-ton nominal load calculations.

Key Features

• V-coil design increases heat transfer surface area within the cased cabinet footprint
• Factory-cased assembly simplifies field installation and protects coil fins during handling
• Rated for R-410A refrigerant systems
• Nominal 4-ton capacity suited for larger residential cooling loads
• 21-inch cabinet width fits standard residential air handler and furnace platforms
• Metering piston (MP) refrigerant metering device included

Compatibility

Designed as an OEM-style cased V-coil replacement for R-410A residential split-system air conditioning and heat pump installations requiring a 4-ton nominal, 21-inch cabinet-width evaporator coil.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable mechanical codes and EPA Section 608 refrigerant handling regulations. Shut down and lock out the system, and recover all refrigerant before disconnecting the existing coil. Confirm cabinet dimensions and drain orientation before positioning the cased coil assembly. Leak-test all refrigerant connections and verify proper airflow across the coil before returning the system to service.

Technical Specifications

• Refrigerant: R-410A
• Nominal Capacity: 4 ton
• Metering Device: Metering Piston (MP)
• Cabinet Style: Cased
• Coil Configuration: V-Coil
• Cabinet Width: 21 inches
• Dimensions (L x W x H): 16.75 x 21 x 21.9375 inches
• Weight: 38.2 pounds

Standard Information

• Brand: ICP
• Manufacturer Part Number: EVMWX48M21A
