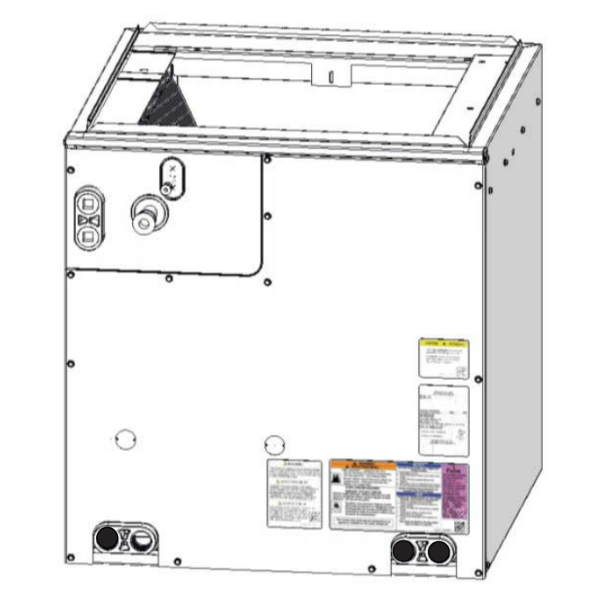

Icp EVMWX36M17A Cased V-coil Evaporator Coil 3 Ton

Product Description

The ICP EVMWX36M17A is a cased, multipoise V-coil evaporator coil designed for use with R-410A refrigerant systems. Rated for 3 ton (36,000 BTU/h) capacity, it is factory-built for reliable heat transfer performance in forced-air cooling and heat pump systems. The cased design protects the coil assembly and simplifies installation in a variety of air handler orientations. Weighing 33.7 pounds, the unit is manageable for a single technician during positioning. Licensed HVAC professionals handle installation as part of a split-system or packaged retrofit service.

This coil is suited for residential and light-commercial split-system air conditioning and heat pump applications using R-410A refrigerant. The multipoise configuration allows installation in upflow, downflow, or horizontal orientations, giving installers flexibility when working with existing ductwork layouts. It is intended for use in forced-air systems where a factory-cased coil is required for a clean, code-ready installation without field-fabricated coil enclosures.

Key Features

• Cased V-coil construction for structural protection and cleaner installation
• Multipoise design supports upflow, downflow, and horizontal orientations
• Compatible with R-410A refrigerant systems
• 3 ton (36,000 BTU/h) nominal capacity
• Factory-assembled for consistent coil geometry and fit
• 33.7-pound unit weight supports manageable field handling

Compatibility

Designed as an OEM-style replacement or new-installation cased evaporator coil for residential and light-commercial R-410A split-system air conditioning and heat pump applications at 3 ton nominal capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. Disconnect and lock out all electrical power and close refrigerant service valves before removing any existing coil. Follow local mechanical codes and the equipment manufacturer's installation instructions for refrigerant line connections, drain pan piping, and coil sealing. Do not pressurize the system without first leak-checking all brazed and flared connections.

Technical Specifications

• Nominal Capacity: 3 ton (36,000 BTU/h)
• Refrigerant Type: R-410A
• Coil Configuration: Cased V-Coil, Multipoise
• Dimensions (L x W): 17.5 inches x 19.4375 inches
• Weight: 33.7 pounds

Standard Information

• Brand: ICP
• Manufacturer Part Number: EVMWX36M17A
