Icp EVDWX48M24A Cased Vertical V-coil 4 Ton R-410A

Product Description

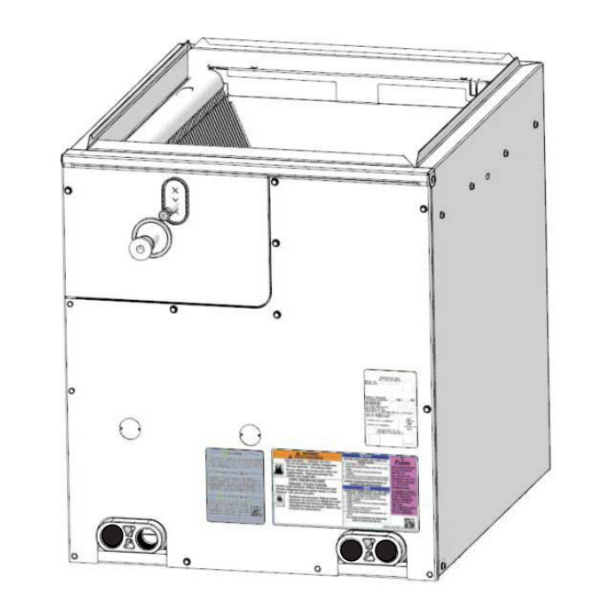

The ICP EVDWX48M24A is a cased, vertical V-coil evaporator coil engineered for residential split-system air conditioning and heat pump applications using R-410A refrigerant. Rated at 4 tons (48,000 BTU/h), this coil is designed as a service replacement unit intended for vertical airflow installations. The cased cabinet design allows for a cleaner installation interface with the air handler or furnace plenum, and the V-coil configuration maximizes surface area within a compact footprint. At 37 pounds, the unit is manageable for a one- or two-technician install. Licensed HVAC technicians are the intended installers for this component.

This evaporator coil is suited for vertical upflow or downflow split-system installations in residential settings where R-410A refrigerant is the system refrigerant. The 24-inch cabinet width fits standard air handler and furnace pairings designed around 4-ton tonnage classes. The service-replacement designation means this coil is intended to drop into existing system configurations where the original coil has failed or degraded, reducing full-system replacement costs while restoring rated system efficiency.

Key Features

• V-coil configuration increases heat-transfer surface area within the cased cabinet envelope
• Factory-cased design for cleaner integration with air handler or furnace plenum
• Rated for R-410A refrigerant systems
• 4-ton capacity suitable for residential split systems
• Service-replacement designation for direct drop-in application
• Vertical installation orientation for upflow and downflow system compatibility

Compatibility

Designed as an OEM-style service replacement evaporator coil for vertical residential split-system air conditioners and heat pumps operating on R-410A refrigerant in the 4-ton capacity class.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. The refrigerant system must be recovered and the system de-energized before removing the existing coil or opening any refrigerant lines. Follow local mechanical codes and the equipment manufacturer guidelines for coil seating, drain pan connection, and refrigerant line brazing or flaring. Do not pressurize or charge the system until the coil cabinet is fully sealed and all connections have been leak-checked.

Technical Specifications

• Capacity: 4 Ton (48,000 BTU/h)
• Refrigerant: R-410A
• Configuration: Cased Vertical V-Coil
• Cabinet Width: 24 inches
• Dimensions (L x W x H): 24.5 x 22.0625 inches
• Weight: 37 pounds

Standard Information

• Brand: ICP
• Manufacturer Part Number: EVDWX48M24A
