Icp ENDWX30L14A Cased Vertical N-coil R-410A 2.5 Ton

Product Description

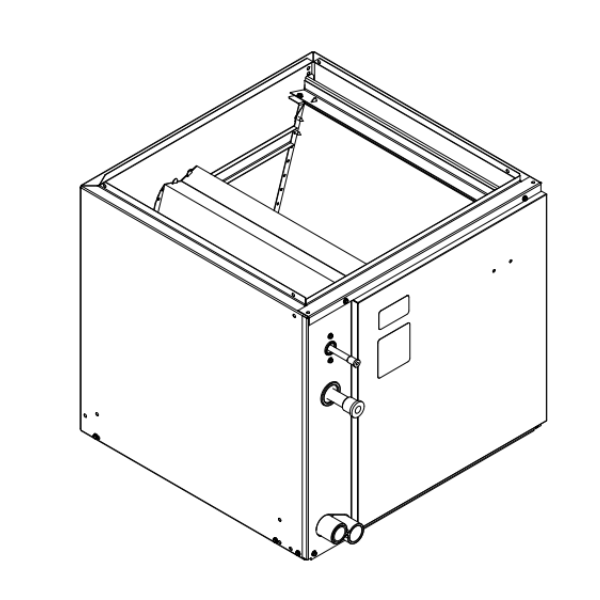

The ICP ENDWX30L14A is a cased, vertical N-coil evaporator coil designed for use with R-410A refrigerant in residential split-system air conditioning and heat pump applications. Shipped as a service replacement coil, it installs in the vertical orientation and arrives in a cased configuration ready for duct connection. At approximately 2.5 tons nominal cooling capacity, this coil is sized for typical residential systems in the 2,000 to 3,000 square foot range. Licensed HVAC technicians handle installation, which requires proper refrigerant handling certification under EPA Section 608 regulations. The unit measures 4.75 inches deep by 13.625 inches wide by 17 inches tall and weighs 38 pounds.

This evaporator coil is intended for vertical airflow applications in residential split-system installations. It is designed as an OEM-style service replacement coil, making it suited for HVAC contractors performing coil changeouts on existing systems. The cased design simplifies installation by providing a ready-to-connect housing that integrates with standard duct connections above a furnace or air handler. R-410A compatibility aligns it with current-generation residential cooling equipment operating without ozone-depleting refrigerants.

Key Features

• Cased vertical N-coil configuration for simplified service installation
• Compatible with R-410A refrigerant systems
• Nominal 2.5 ton cooling capacity for residential applications
• Compact footprint: 4.75 inches x 13.625 inches x 17 inches
• Shipped as a service replacement coil for field changeouts
• Lightweight at 38 pounds for easier single-tech handling

Compatibility

Designed as an OEM-style service replacement cased evaporator coil for vertical R-410A residential split-system air conditioning and heat pump installations.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before beginning coil removal or installation. Ensure refrigerant is properly recovered before opening the system, and leak-test all connections before recharging. Follow local mechanical codes and manufacturer guidelines for drain pan connections and condensate line routing.

Technical Specifications

• Refrigerant Type: R-410A
• Orientation: Vertical
• Coil Style: N-Coil
• Configuration: Cased
• Nominal Capacity: 2.5 Ton
• Dimensions (L x W x H): 4.75 inches x 13.625 inches x 17 inches
• Weight: 38 pounds

Standard Information

• Brand: ICP
• Manufacturer Part Number: ENDWX30L14A
