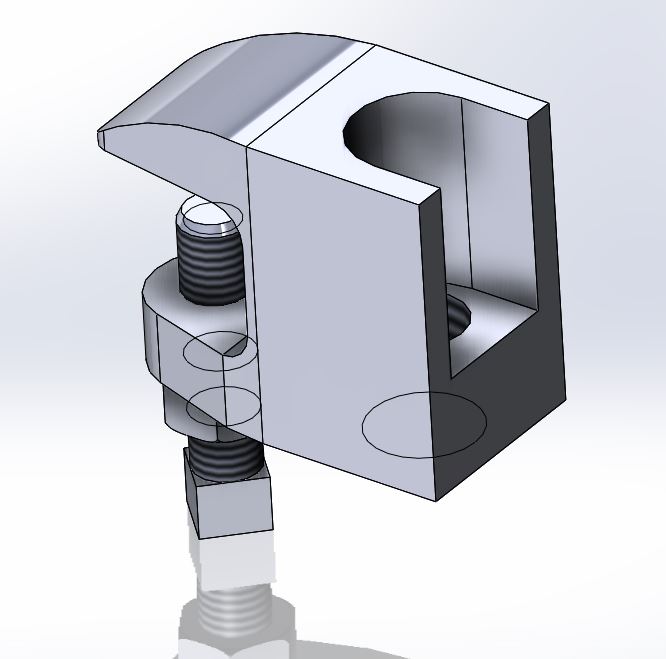

HANGERS 62SS0038 Small Mouth Beam Clamp 3/8-16 Rod

Product Description

The HANGERS 62SS0038 is a small mouth beam clamp designed for securing a hanger rod to the top or bottom flange of a beam or bar joist. Made of T304 stainless steel, it offers durability and resistance to corrosion. This clamp is ideal for tight spaces, ensuring a reliable hold. The product includes a 3/8-16 set screw.

• Attaches hanger rod to beam or bar joist
• Constructed from T304 stainless steel
• Complies with Federal Specification A-A-1192 A

Product Highlights

This clamp is effective for structural support in various applications, providing stability and resilience.

Product Information

Standard Information

• Brand: Hangers
• MPN: 62SS0038

Technical Specifications

• Material: T304 Stainless Steel
• Rod Size: 3/8-16
• Load Capacity: 610 lb
• Height: 1-1/2 inches
• Series: FIG 62
• Includes: 3/8-16 Set Screw
• Standards and Approvals: Complies with Federal Specification A-A-1192 A | FM Approved | MSS SP-58/SP-69 | UL - ULC Listed
• Clamp Type: Small Mouth Beam Clamp
• Application: Attaching Hanger Rod to the Top Flange of a Beam or Bar Joist
• Size: 3/8 inches
• Weight: 0.34 lbs
