HANGERS 62G0050 Beam Clamp Small Mouth 1/2 Inch Replacement MPN

Product Description

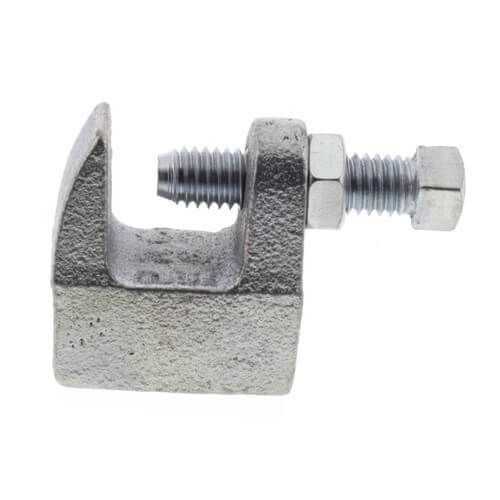

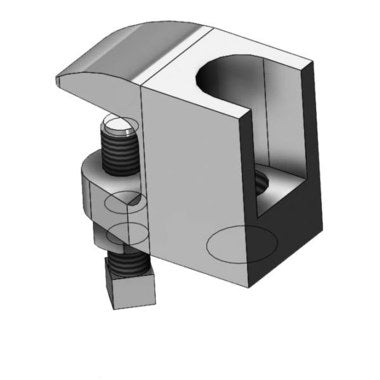

The HANGERS 62G0050 beam clamp is ideal for connecting hanger rods to the top flange of a beam or bar joist. This product features a small mouth design for use in tight spaces. It is made from durable steel or ductile iron complemented by a hardened steel set screw. The electro-galvanized finish offers resistance to corrosion, making it suitable for various installations.

• Accommodates 1/2-inch rod diameters
• Designed for flange thickness not exceeding five-eighths inch
• Supports pipes, cables, or suspended equipment

Product Highlights

This clamp is effective in creating secure connections for hanging systems.

Product Information

Standard Information

• Brand: Hangers
• MPN: 62G0050

Technical Specifications

• Material: Ductile Iron
• Finish: Electro-Galvanized
• Size: 1/2 Inch
• Application: Attaching Hanger Rod to the Top Flange of a Beam or Bar Joist
• Product Type: Small Mouth
• Max Load: 470 lbs
• Pipe Size: 4
