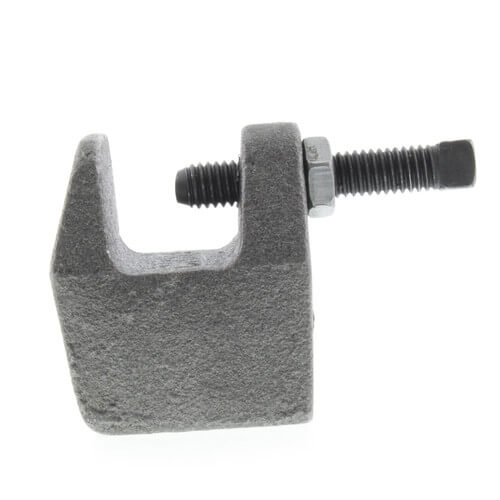

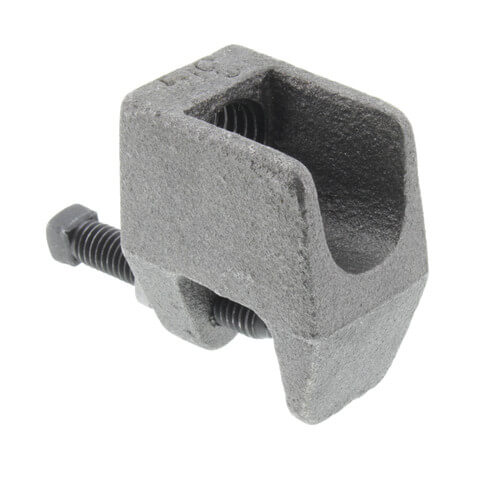

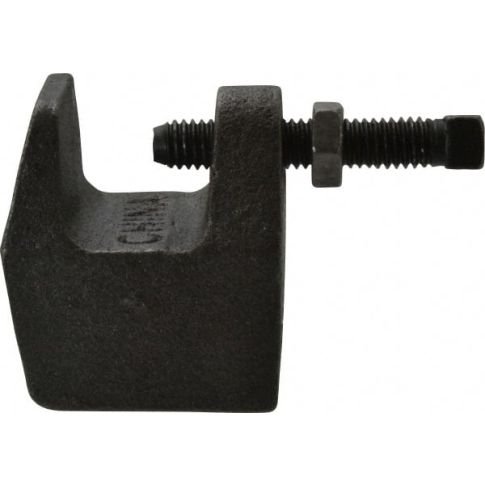

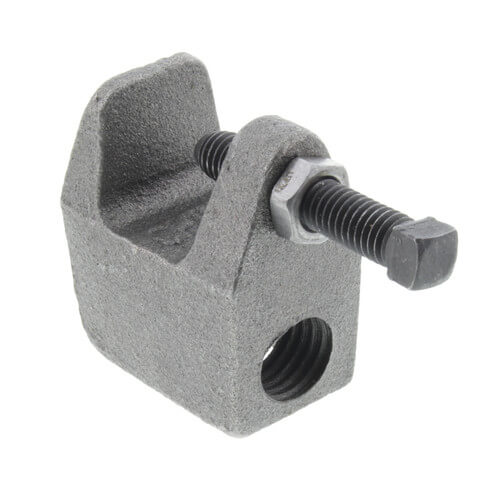

HANGERS 62B0075 3/4 Black Jr. Top Beam Clamp

Product Description

The HANGERS 62B0075 is a 3/4 inch black top beam clamp. It is built for attaching a hanger rod to the top flange of a beam or bar joist. This clamp is made from ductile iron and features a hardened steel set screw. Its design allows for stable support of pipes or tubing.

• Constructed from ductile iron.
• Hardened steel set screw for durability.
• Adjustable locking feature for secure installation.

Product Highlights

This clamp is suitable for applications where the flange thickness does not exceed five eighths of an inch.

Product Information

Standard Information

• Material: Ductile Iron
• Finish: Plain Black

Technical Specifications

• Maximum Load: 700 lbs
• Clamp Type: Top Clamp
• Maximum Flange Thickness: 5/8 inches
• Rod Size: 3/4 inches
• Standards: cULus Listed; FM Approved
• Pipe Size: 6 inches
