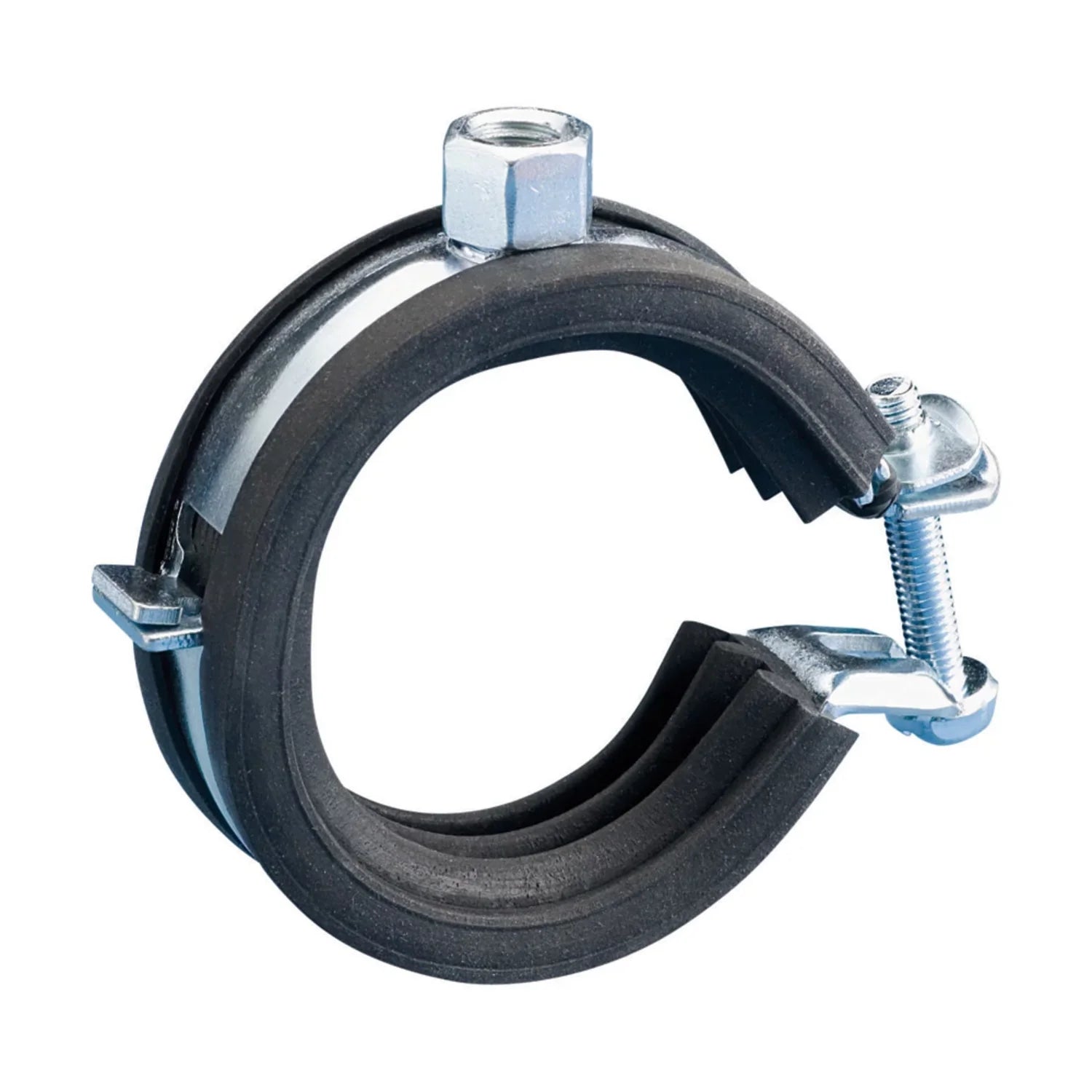

Hangers 454008 CADDY Superfix Standard Duty, 1.89 inches–2.047 inches OD, 1 1/2 inches Pipe

Product Description

The HANGERS 454008 CADDY Superfix is recommended for the suspension of stationary non-insulated pipe lines. This easy-to-close clamp is designed for steel pipe and copper tube. Its unique hinged design eliminates the need to disassemble the clamp prior to installation.

• Easy-to-close clamp for steel pipe and copper tube
• Unique hinged design eliminates the need to disassemble the clamp prior to installation
• All-steel design of the closing mechanism retains strength even when exposed to heat

Product Highlights

Features a welded 3/8" cap nut for easy attachment to threaded rod and conforms to MSS SP-58 (Type 12).

Product Information

Standard Information

• Brand: HANGERS
• Manufacturer Part Number: 454008

Technical Specifications

• Material: Steel;EPDM-SBR Rubber
• Finish: Electrogalvanized
• Temperature: -58 to 230 °F
• Outer Diameter (OD): 1.890" - 2.05"
• Pipe Size: 1 1/2"
• Rod Size (RS): 3/8"
• B: 0.90625"
• Static Load (F): 180lbf
• UPC: 782856590507
• EAN: 0782856590507
• Standard Packaging Quantity: 50
• Packing Quantity: 1
