HANGERS 41SSI0125 Split Ring Extension Hanger 1-1/4 inch

Product Description

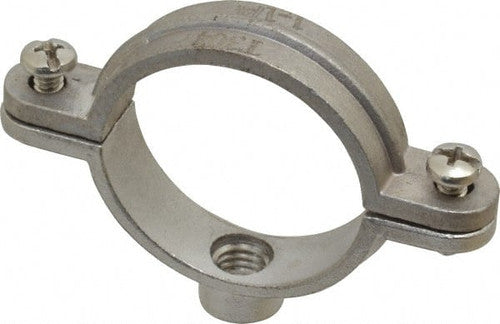

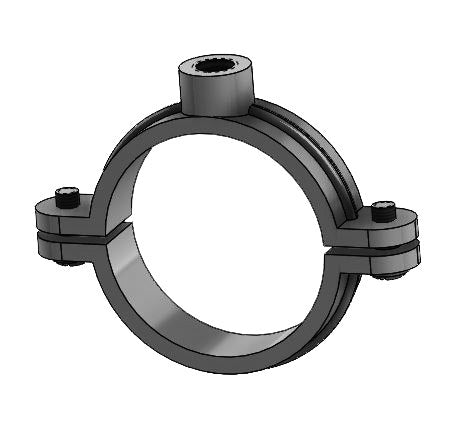

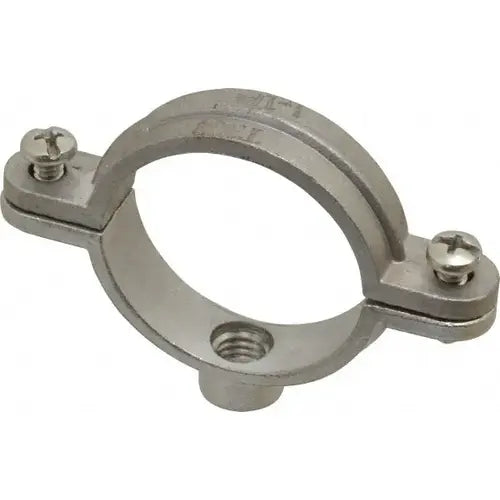

The HANGERS 41SSI0125 is a robust split ring hanger. It is made from 304 stainless steel. This hanger is suitable for suspending non-insulated and stationary pipe lines. The design works in both horizontal and vertical orientations. It meets the Manufacturers Standardization Society standards, MSS SP-58 and SP-69 (Type# 12). The hanger is designed to fit a pipe size of one and one quarter inches and can support a rod of three eighths inches.

• Constructed from durable 304 stainless steel.
• Accommodates a one and one quarter inch pipe size.
• Supports a load capacity of one hundred and eighty pounds.

Product Highlights

This product is ideal for securing pipe lines where stability is crucial.

Product Information

Standard Information

• Manufacturer: Empire Industries
• MPN: 41SSI0125

Technical Specifications

• Product Type: Split Ring Hanger
• Material: 304 Stainless Steel
• Nominal Pipe Size: 1-1/4 inches
• Rod Size: 3/8 inches
• Load Capacity: 180 LB
• Material Grade: 304
• Pipe Outside Diameter: 1.6600 inches
• UNSPSC Code: 31162306
• Figure Number: 41SSI
